Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Outputs and Type 32, Non-Isolated
Supplied Contents Board(s)
Utilized IC / Part A5974D, STAP16DPS05, STM8A
Base Product Number STEVAL
Other Names 497-15181
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283887-STEVAL-ILL059V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL059V1 CAD Model

Description

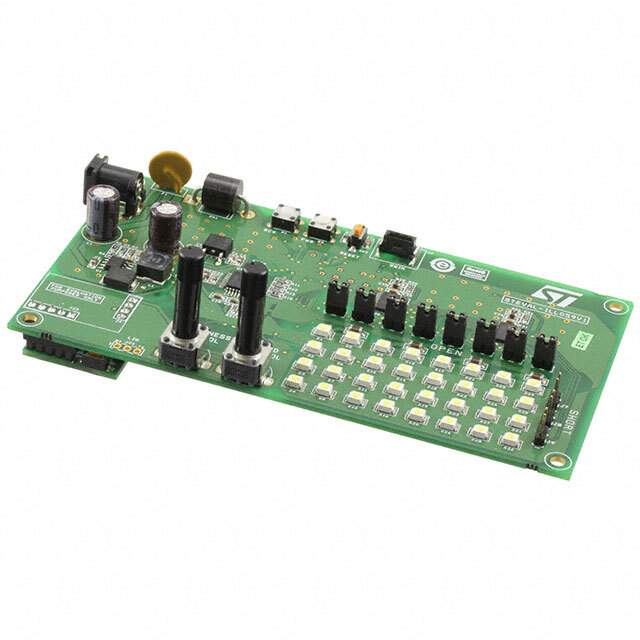

The STEVAL-ILL059V1 from STMicroelectronics is a cutting-edge evaluation board designed for driving LED arrays using the LED6000 step-down monolithic switching regulator. This product is aimed at professionals and enthusiasts looking to test the performance of the LED6000 in a practical application, offering a comprehensive solution for managing LED lighting systems with high efficiency and reliability.

Key Features

  • Vin range from 4.5 V to 61 V
  • Up to 3 A output current
  • Adjustable output voltage from 2 V to Vin
  • High switching frequency up to 1 MHz
  • Dimming control through PWM signal
  • Overvoltage, overcurrent, and thermal protection
  • RoHS compliant

Applications

The STEVAL-ILL059V1 is ideal for a range of applications requiring efficient power management for LED arrays. These include:

  • Street lighting
  • Architectural lighting
  • General purpose LED lighting
  • Industrial lighting systems

Design and Performance

The evaluation board showcases the high performance and versatility of the LED6000 regulator. It has been designed with an optimized layout to minimize noise and enhance thermal performance. The board is equipped with connectors for easy integration into existing systems and for experimenting with different LED loads. The PWM dimming control feature allows for precise management of light intensity, which is essential in creating adaptable lighting solutions.

Additional Information

The STEVAL-ILL059V1 is supported by comprehensive documentation, including schematics, BOM, gerber files, and technical guidelines to facilitate rapid development and testing. STMicroelectronics also provides dedicated software tools and support to ensure a smooth evaluation process for designers and engineers.

For those interested in developing efficient and sophisticated LED lighting solutions, the STEVAL-ILL059V1 evaluation board is an invaluable resource that demonstrates the capabilities of the LED6000 regulator in a real-world setting.
