Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 1.5A
Outputs and Type 1, Non-Isolated
Voltage - Output 65V
Features Dimmable
Voltage - Input 165 ~ 277 VAC
Supplied Contents Board(s)
Utilized IC / Part L6562A
Base Product Number STEVAL
Other Names 497-STEVAL-ILL043V1,497-13153,497-13153,-497-13153
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283837-STEVAL-ILL043V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL043V1 CAD Model

Description

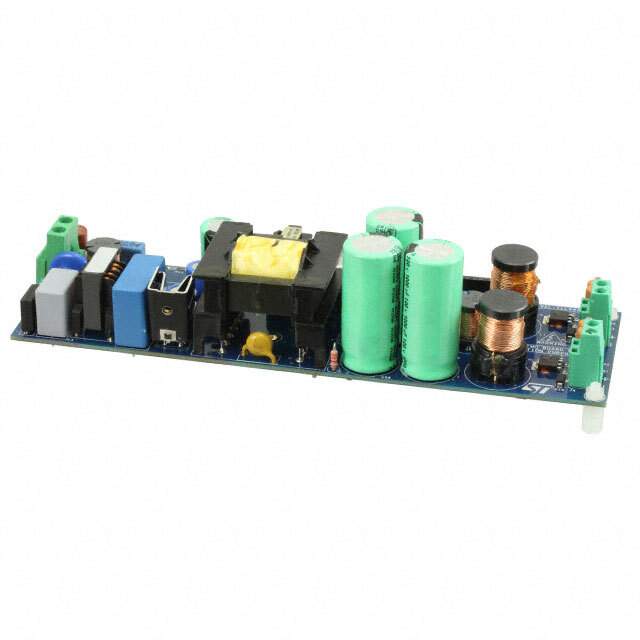

The STEVAL-ILL043V1 from STMicroelectronics is a state-of-the-art LED driver evaluation board designed for high-performance applications. This evaluation board is specifically tailored for driving LEDs with high efficiency and precision, making it an ideal solution for developers looking to create advanced lighting systems.

Key Features

  • Advanced LED Driver: The board is equipped with an advanced LED driver, ensuring optimal performance and energy efficiency for a variety of lighting applications.
  • Flexible Power Supply: It supports a wide range of input voltages, accommodating various power sources and making it suitable for global use.
  • Dimming Capabilities: With built-in dimming features, the STEVAL-ILL043V1 allows for smooth and continuous adjustment of light intensity, which is essential for creating the desired ambiance in any setting.
  • Thermal Protection: The board includes thermal protection mechanisms to prevent damage from overheating, thereby enhancing the longevity and reliability of the system.
  • Compact Design: Its compact form factor makes it easy to integrate into existing lighting fixtures or new designs without requiring significant space.

Applications

The STEVAL-ILL043V1 is versatile and can be used in a range of applications, including:

  • Architectural lighting
  • Street lighting
  • Commercial and retail lighting
  • Emergency lighting
  • General purpose LED lighting

Technical Specifications

The technical specifications of the STEVAL-ILL043V1 offer a glimpse into its capabilities:

  • Input Voltage Range: Wide range to accommodate various scenarios
  • High Efficiency: Optimized for maximum energy savings
  • Dimming: Supports multiple dimming techniques for flexible light control

With the STEVAL-ILL043V1, STMicroelectronics continues to demonstrate its commitment to providing advanced solutions for the lighting industry. This evaluation board is not only a testament to the company's innovation but also serves as a powerful tool for developers and engineers to create sophisticated LED lighting systems that meet the demands of modern applications.
