Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 2.7A
Outputs and Type 1, Isolated
Voltage - Output 48V
Voltage - Input 177 ~ 277 VAC
Supplied Contents Board(s)
Utilized IC / Part L6562, L6599
Other Names 497-14491,-497-14491
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283874-STEVAL-ILL052V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL052V1 CAD Model

Description

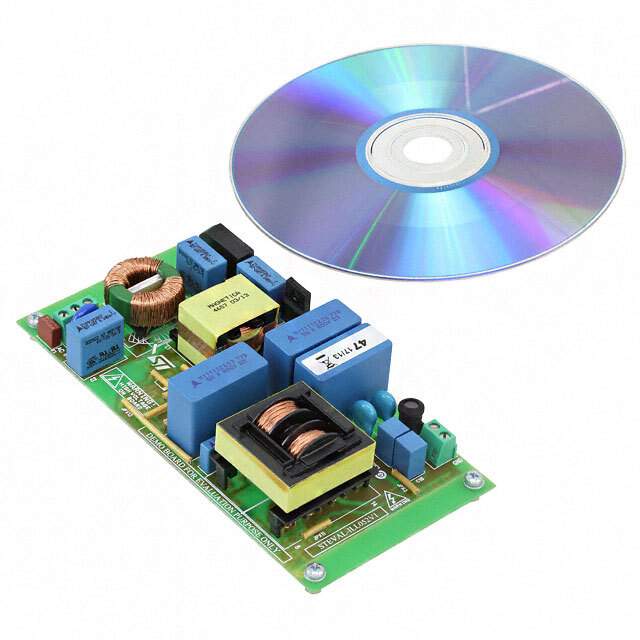

STEVAL-ILL052V1 LED Driver Evaluation Board

The STEVAL-ILL052V1 from STMicroelectronics is a high-brightness LED driver evaluation board designed to demonstrate the capabilities of the LED6000 step-down LED driver IC. This evaluation board is tailored for driving a single LED or an LED string with a maximum power of 48 W, making it an ideal solution for a wide range of lighting applications, including architectural lighting, street lighting, and general-purpose LED illumination.

The LED6000 integrated circuit included in the STEVAL-ILL052V1 is a monolithic, step-down, current-mode PWM driver, which is capable of delivering up to 3 A of output current. It has an input voltage range from 4.5 V to 38 V, making the board flexible for use in various input conditions. The IC's efficiency and reliability are enhanced by features such as soft-start, thermal shutdown, and overcurrent protection.

One of the key features of this evaluation board is its dimming capability. The LED6000 allows for both analog and PWM dimming, providing users with precise control over the light output. The PWM dimming can be achieved through an external signal, which makes it easy to integrate into various control systems.

The STEVAL-ILL052V1 is equipped with a number of test points and jumpers, which offer flexibility in configuration and ease of measurement during evaluation. The board also includes EMI filtering and is designed to meet EN55015 standards, ensuring minimal interference with other electronic devices.

STMicroelectronics provides comprehensive technical documentation for the STEVAL-ILL052V1, including schematics, PCB layout, bill of materials (BOM), and application notes. This support material enables designers to quickly understand the board's functionality and to expedite the integration of the LED6000 into their own designs.

In summary, the STEVAL-ILL052V1 is a versatile and robust evaluation platform that showcases the performance and features of the LED6000 LED driver IC. It is an excellent tool for engineers and designers looking to develop high-efficiency LED lighting solutions with advanced dimming capabilities.
