Same model may have multiple batches, images only for reference.

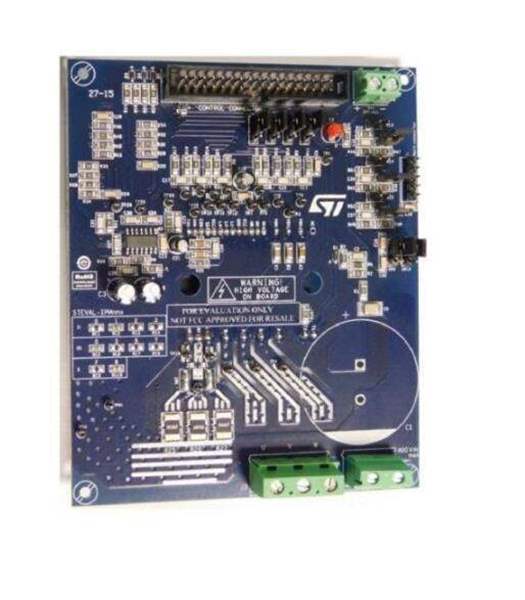

STEVAL-IPM30BSTMicroelectronics
Same model may have multiple batches, images only for reference.

STEVAL-IPM30B

Part No STEVAL-IPM30B
Manufacturer STMicroelectronics
Catalog Evaluation Boards—RF Evaluation and Development Kits, Boards
Description MOTOR CONTROL SOLUTION EVAL BOAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer STMicroelectronics
Category Development Boards, Kits, Programmers Evaluation Boards Evaluation and Demonstration Boards and Kits
Packaging Bulk
Part Status Active
Type Power Management
Function Motor Controller/Driver
Utilized IC / Part STGIB30M60TS-L
Supplied Contents Board(s)
Win Source Part Number WS1304256-STEVAL-IPM30B
Ultra Librarian 3D Model Ultra Librarian STEVAL-IPM30B CAD Model

Description

The STEVAL-IPM30B is a compact motor drive power board equipped with the SLLIMM (small low-loss intelligent molded module) 2nd series module STGIB30M60TS-L. It provides an affordable, easy-to-use solution for driving high power motors for a wide range of applications such as white goods, air conditioners, compressors, power fans, high-end power tools, and generally 3-phase inverters for motor drives. The IPM itself consists of short-circuit rugged IGBTs and a wide range of features including undervoltage lockout, smart shutdown, temperature sensing and NTC inside, and overcurrent protection.
