Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.25V
Current - Output 5A
Voltage - Input 5V ~ 12V
Regulator Topology Buck
Frequency - Switching 300kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6728
Other Names STEVALISA038V1,497-8228,STEVAL-ISA038V1,-497-8228
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284284-STEVAL-ISA038V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA038V1 CAD Model

Description

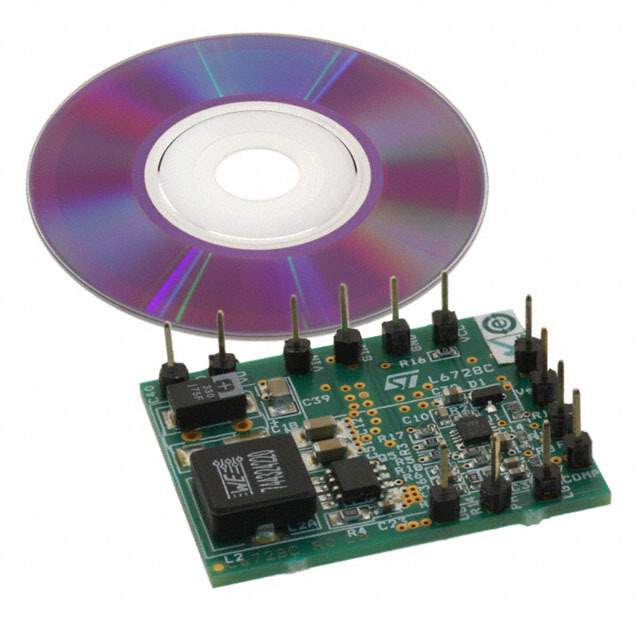

STEVAL-ISA038V1 - STMicroelectronics Product Overview

The STEVAL-ISA038V1 from STMicroelectronics is a highly efficient, compact, and versatile evaluation board designed for power supply solutions. This product is part of STMicroelectronics' extensive range of evaluation tools that facilitate the testing and development of various electronic components and systems. The STEVAL-ISA038V1 is specifically tailored for testing the performance of the L7986A, a step-down switching regulator with a wide input voltage range and high current capability.

Key Features

  • High Efficiency: The board is built around the L7986A regulator, which provides up to 3 A of continuous current with excellent efficiency, making it suitable for a wide variety of applications.
  • Wide Input Voltage Range: It can operate with an input voltage from 4.5 V to 38 V, accommodating a broad spectrum of power sources.
  • Adjustable Output Voltage: The output voltage is adjustable from 0.8 V to VIN, ensuring versatility for different design requirements.
  • Thermal Protection: The device includes thermal shutdown and current limiting features, ensuring safe operation under different conditions.
  • RoHS Compliant: The board is designed with environmental considerations in mind, complying with the Restriction of Hazardous Substances Directive.

Applications

The STEVAL-ISA038V1 is ideal for a range of applications, including:

  • Industrial power systems
  • Consumer electronics
  • Automotive and transportation
  • Telecommunications infrastructure

Design and Development

With the STEVAL-ISA038V1, engineers and designers can quickly prototype and test power supply circuits using the L7986A regulator. The evaluation board comes with all the necessary components for immediate use, including capacitors, inductors, and resistors, as well as a comprehensive set of test points for easy measurement and debugging.

This evaluation board is an invaluable tool for engineers looking to create efficient and reliable power supply systems with the L7986A regulator. The STEVAL-ISA038V1 simplifies the design process, reduces development time, and helps accelerate the time-to-market for new products.
