Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.25V
Current - Output 5A
Voltage - Input 5V ~ 12V
Regulator Topology Buck
Frequency - Switching 300kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6727
Other Names 1805-STEVAL-ISA039V1,STEVALISA039V1,-497-8266,497-8266
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284222-STEVAL-ISA039V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA039V1 CAD Model

Description

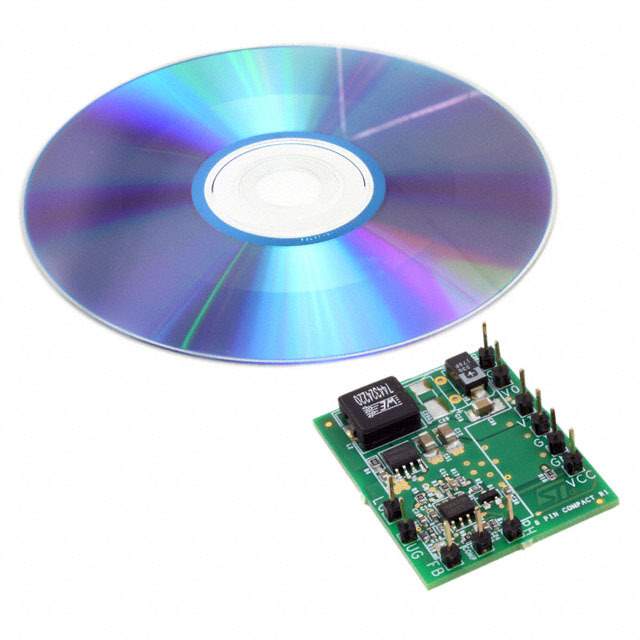

The STEVAL-ISA039V1 from STMicroelectronics is a high-performance evaluation board designed for applications requiring efficient power conversion and reliability. This evaluation board is based on the L7986A, a step-down switching regulator capable of delivering up to 3A of continuous current with excellent line and load regulation features.

The board operates over a wide input voltage range from 4.5V to 38V, making it suitable for a variety of industrial, automotive, and telecommunications power supply scenarios. The adjustable output voltage, which can be set from 0.8V to VIN, provides flexibility and adaptability for different design requirements.

Key Features:

  • High Efficiency: The L7986A regulator offers up to 95% efficiency, which minimizes heat generation and allows for a more compact system design.
  • Wide Input Voltage Range: With an input voltage range of 4.5V to 38V, the board is versatile enough to be used in a wide array of applications.
  • Adjustable Output Voltage: Users can set the output voltage from 0.8V to the input voltage level, providing a customizable solution for various circuits.
  • Thermal Protection: The board includes thermal shutdown and current limiting features, ensuring the protection and longevity of both the board and the end application.
  • RoHS Compliant: The STEVAL-ISA039V1 is designed with environmental considerations in mind and complies with RoHS directives.

The evaluation board also features an enable pin that allows the user to turn the regulator on and off, providing additional power-saving capabilities. The switching frequency of the L7986A is adjustable up to 1 MHz, which permits the use of small surface-mount inductors and capacitors, reducing space and cost.

Whether you are developing power supplies for consumer electronics, automotive systems, or industrial equipment, the STEVAL-ISA039V1 offers a reliable and efficient solution for your power conversion needs. Its robust design and versatility make it an ideal platform for testing and implementing your power management designs.
