Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Input 4.5V ~ 32V
Regulator Topology Resonant
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part SRK2001, STP120N4F6
Base Product Number STEVAL
Other Names 497-15604
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284313-STEVAL-ISA165V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA165V1 CAD Model

Description

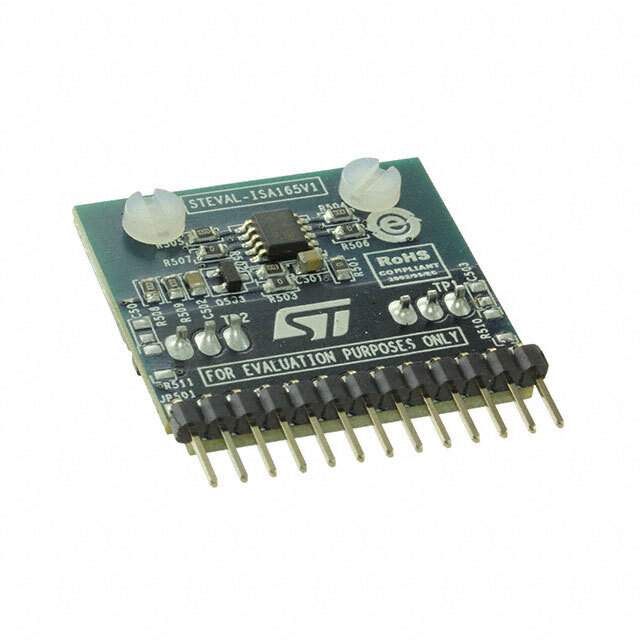

STEVAL-ISA165V1 Evaluation Board from STMicroelectronics

The STEVAL-ISA165V1 is a highly efficient evaluation board designed by STMicroelectronics, tailored for the testing and performance evaluation of the L7987L, a powerful step-down switching regulator. This product is an excellent choice for developers and engineers looking to explore the capabilities of the L7987L in their power supply designs, especially in applications requiring a high voltage input range and a compact, flexible solution.

The L7987L regulator on the STEVAL-ISA165V1 can handle an input voltage range from 4.5V to 61V, making it versatile for a variety of industrial and consumer applications. The output voltage can be adjusted from 0.8V to VIN, with an output current capability of up to 3A, which is suitable for a wide range of uses. The high switching frequency, which can be adjusted up to 1MHz, allows for the use of small-sized external components, thus reducing the overall footprint and enhancing the power density of the application.

The STEVAL-ISA165V1 features a range of protections to ensure the longevity and reliability of the application. These include overcurrent protection, thermal shutdown, and short-circuit protection. Additionally, the evaluation board comes with an enable pin, allowing the power supply to be turned on or off as required, and a soft-start feature that limits inrush current during startup, enhancing system stability.

Designed with flexibility in mind, the evaluation board includes jumpers and test points that facilitate easy measurement and modification of the circuit's parameters. This makes the STEVAL-ISA165V1 an ideal platform for experimentation and rapid prototyping, enabling designers to quickly iterate and refine their power supply solutions.

In summary, the STEVAL-ISA165V1 from STMicroelectronics is a robust and feature-rich evaluation board that showcases the performance and flexibility of the L7987L step-down switching regulator. It is an indispensable tool for anyone looking to create efficient, high-performance power supplies for a wide range of electronic applications.
