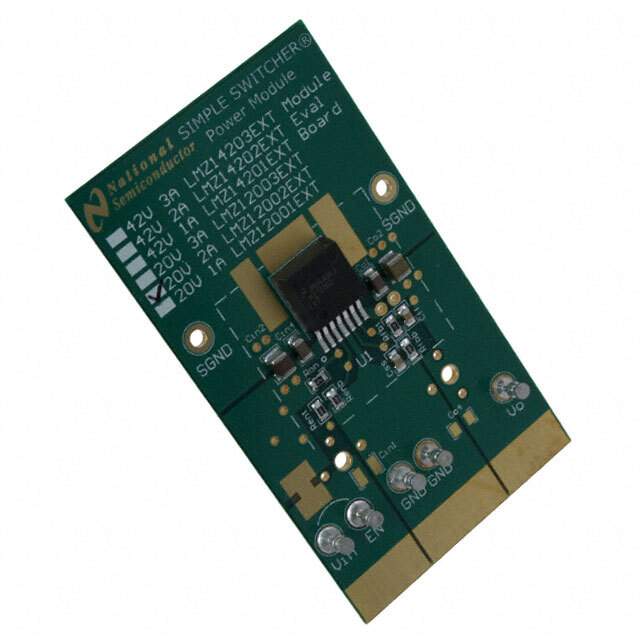

The LMZ12002EXTEVAL/NOPB is a meticulously designed evaluation board from Texas Instruments, crafted for engineers and designers to expedite the assessment process of the LMZ12002 SIMPLE SWITCHER® power module. This module is a highly efficient, easy-to-use converter that is capable of delivering up to 2A of output current with exceptional power conversion efficiency.

Key Features

• Integrated Inductor: The LMZ12002 power module integrates an inductor within its compact package, facilitating a streamlined design with minimal external components.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to 6V, allowing for a wide range of applications and flexibility in usage.
• High Efficiency: With an efficiency rate of up to 95%, this module ensures that energy loss is minimized, making it ideal for energy-sensitive designs.
• Thermal Performance: The module boasts excellent thermal performance, making it suitable for high-temperature environments and applications with limited airflow.
• Easy-to-Use: The evaluation board is designed for simplicity, enabling quick and easy prototyping without the need for complex circuitry or advanced knowledge of power supply design.

Applications

The LMZ12002EXTEVAL/NOPB is versatile and can be used in a variety of applications, including telecommunications, networking equipment, industrial systems, and consumer electronics. Its ability to provide a stable and reliable power supply makes it an excellent choice for powering sensitive electronic components such as microprocessors, FPGAs, and DSPs.

Package Contents and Additional Information

The evaluation board package includes the LMZ12002 power module, supporting documentation, and hardware required for immediate setup and testing. Detailed information, including schematics, layout files, bill of materials, and user guides, is available on the Texas Instruments website to support developers in evaluating and integrating the module into their designs.

With its robust design, high efficiency, and ease of use, the LMZ12002EXTEVAL/NOPB evaluation board is an essential tool for any designer looking to quickly and effectively evaluate the LMZ12002 power module's capabilities and implement it in their power supply solutions.
