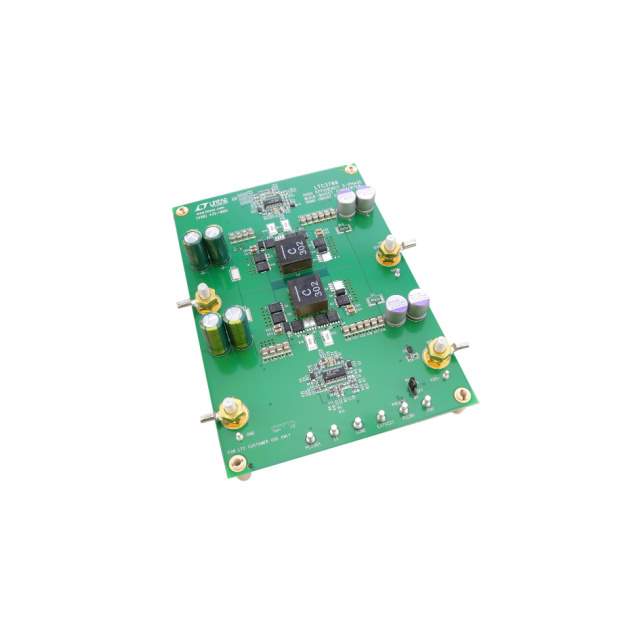

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Linear Technology
Main Purpose DC/DC, Step Up or Down
Outputs and Type 1, Non-Isolated
Voltage - Output 12V
Output Current 25A
Voltage - Input 6 V ~ 36 V
Regulator Topology Buck-Boost
Frequency - Switching 200kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LTC3789
Win Source Part Number 783638-DC2253A
Popularity Medium
Supply and Demand Status Limited
Family Name DC2253A
Introduction Date October 06, 2014
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DC2253A CAD Model

Description

Product Overview: DC2253A - Demonstration Board for LTC6811 High Voltage Battery Monitor

The DC2253A, crafted by Linear Technology, is a state-of-the-art demonstration board designed for the LTC6811 high voltage battery monitor. This advanced tool is specifically engineered to simplify the evaluation of the LTC6811, which is a multicell battery stack monitor that plays a crucial role in battery management systems (BMS). The LTC6811 is capable of measuring up to 12 series-connected battery cells with a total measurement error of less than 1.2mV.

Key Features of DC2253A:

  • High Voltage Capability: The board is designed to handle high voltage battery stacks, which is essential for electric vehicles (EVs), hybrid electric vehicles (HEVs), and other high voltage battery-powered applications.
  • Precision Monitoring: With the LTC6811, the DC2253A offers precise monitoring of cell voltages, ensuring safety and efficiency in battery utilization.
  • Multiple Cell Support: It can measure up to 12 series-connected battery cells per IC, which can be expanded through multiple ICs in series, allowing for monitoring of large battery stacks.
  • Robust Communication: The board includes an isolated serial interface for robust communication with a host controller, even in noisy environments.
  • Flexible Configuration: The DC2253A provides a configurable setup for various battery chemistries and cell arrangements, making it versatile for different applications.
  • Daisy Chain Capability: The LTC6811 can be daisy-chained with multiple LTC6811 ICs on the same board, enabling monitoring of an even larger number of cells.

Applications:

The DC2253A is ideal for a range of applications that require reliable and accurate battery monitoring, such as:

  • Electric vehicles (EVs)
  • Hybrid electric vehicles (HEVs)
  • Energy storage systems
  • Backup power systems

This demonstration board is an invaluable tool for engineers and developers working on battery management systems, offering a practical and efficient solution for testing and validating the performance of the LTC6811 high voltage battery monitor. With the DC2253A, users can ensure their BMS designs are optimized for accuracy, reliability, and safety.

Additional Resources:

For further information and detailed specifications, users can access the DC2253A datasheet and user manual, which provide comprehensive guidance on board setup, operation, and integration into existing systems.
