Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series MEMS
Package Bulk
Product Status Obsolete
Sensor Type Accelerometer, Gyroscope, Magnetometer, Pressure, Temperature
Sensing Range Multiple Ranges
Sensitivity Multiple
Embedded No
Supplied Contents Board(s)
Utilized IC / Part L3GD20, LPS331AP, LSM303DLHC
Other Names 497-13014,STEVALMKI124V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283647-STEVAL-MKI124V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI124V1 CAD Model

Description

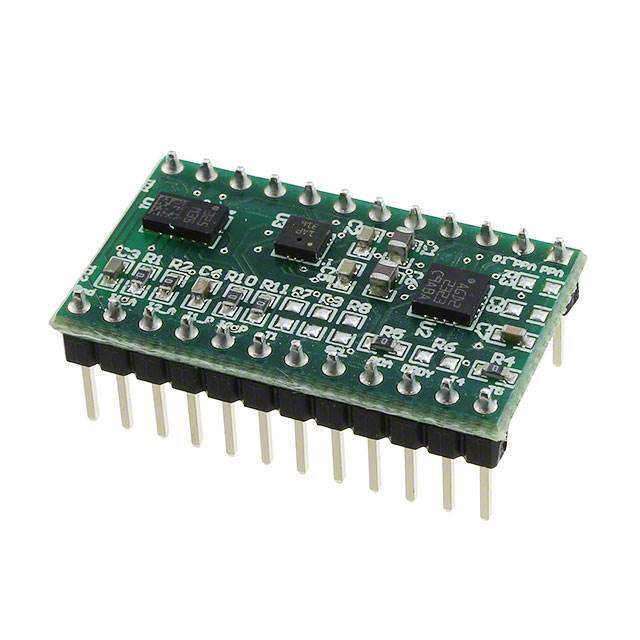

STEVAL-MKI124V1 - Adapter Board from STMicroelectronics

The STEVAL-MKI124V1 is a sophisticated adapter board designed by STMicroelectronics as part of its extensive sensor product offerings. This board is specifically engineered to facilitate the evaluation of MEMS devices in the LSM6DS0 product family, which are known for their high-performance 3D digital accelerometer and 3D digital gyroscope functionalities.

The adapter board is compatible with the standard DIL 24 socket, which ensures that it can be easily integrated into an existing setup for quick testing and development. The STEVAL-MKI124V1 is an essential tool for designers and engineers who require a reliable and efficient way to assess the capabilities of the LSM6DS0 sensors, particularly in applications that demand precise motion tracking and orientation detection.

Featuring a compact design, the STEVAL-MKI124V1 is equipped with an LGA-16L socket, enabling direct connection to the sensor package. This setup provides users with a direct interface to the sensor, allowing for comprehensive testing of the device's features and performance. The adapter board also includes the necessary decoupling capacitors, ensuring signal integrity and stable operation throughout the evaluation process.

Designed with flexibility in mind, the STEVAL-MKI124V1 can be used in conjunction with ST's Unico GUI (Graphical User Interface) software, which provides an intuitive platform for configuring the sensor's parameters and analyzing its data output. The Unico GUI is instrumental for accelerating the development cycle and optimizing the sensor's integration into the final product.

Whether it's for consumer electronics, industrial applications, or emerging IoT devices, the STEVAL-MKI124V1 adapter board is an invaluable asset for any development team looking to harness the advanced capabilities of STMicroelectronics' LSM6DS0 sensor series. With its user-friendly design and robust testing features, the STEVAL-MKI124V1 is set to become a staple in sensor evaluation and development.
