Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series iNEMO
Package Box
Sensor Type Accelerometer, Gyroscope, Magnetometer, 3 Axis
Interface I2C, SPI
Voltage - Supply 1.9V ~ 3.6V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part LSM9DS1
Base Product Number STEVAL
Other Names 497-15392
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8473.30.1180
Win Source Part Number 1283689-STEVAL-MKI159V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI159V1 CAD Model

Description

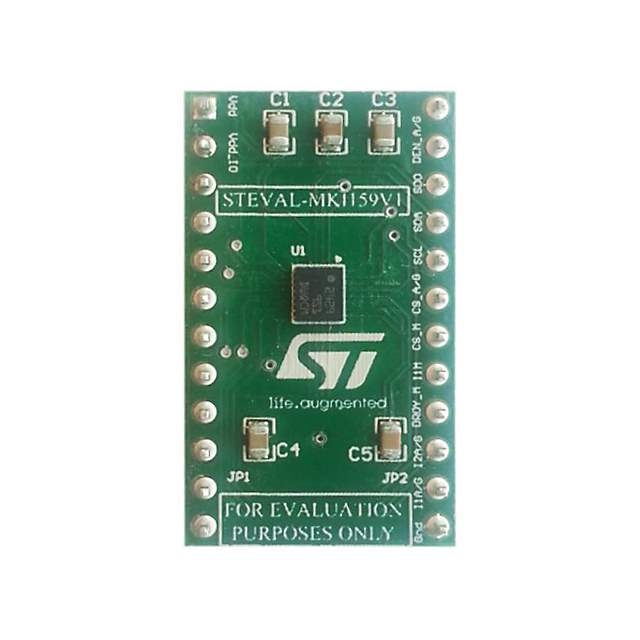

STEVAL-MKI159V1 - Adapter Board for MEMS Sensors

The STEVAL-MKI159V1, designed and manufactured by STMicroelectronics, is a professional adapter board created to facilitate the evaluation of MEMS devices in the standard DIL24 socket. This board is a part of the extensive portfolio of ST's evaluation tools that are meticulously designed to provide engineers with the most efficient pathways for assessing the performance and capabilities of their MEMS sensors.

This adapter board is specifically tailored for ST's MEMS adapters that support different sensor types, including accelerometers, gyroscopes, magnetometers, and environmental sensors. The STEVAL-MKI159V1 is an integral component for developers who require a quick and reliable method to plug the sensor into an existing system or a dedicated evaluation board such as ST’s STEVAL-MKI109V3.

Key Features:

  • Designed to host STMicroelectronics MEMS adapters that are compatible with the DIL24 socket
  • Easy-to-use plug-and-play system for ST MEMS sensor evaluation
  • Direct interface with STEVAL-MKI109V3 and other evaluation boards
  • Wide range of supported MEMS sensors for comprehensive testing

The STEVAL-MKI159V1 comes with a straightforward and flexible interface, which simplifies the process of sensor evaluation. It allows for the seamless integration of various MEMS sensors into a user's existing setup, ensuring a versatile and user-friendly experience. The adapter board is designed with the end-user in mind, providing a convenient bridge between the sensor and the final application or evaluation system.

By choosing the STEVAL-MKI159V1 adapter board, developers and engineers can significantly reduce development time and accelerate the prototyping phase of their projects. Its compatibility with a broad range of MEMS sensors makes it an invaluable tool for professionals working on motion sensing, environmental sensing, and other advanced applications that require high-precision sensor technology.

Overall, the STEVAL-MKI159V1 is a testament to STMicroelectronics' commitment to providing innovative, high-quality tools that support the development and deployment of advanced sensor technologies in a multitude of industry applications.
