Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 20mA
Outputs and Type 5, Non-Isolated
Voltage - Output 7.5V
Features Dimmable
Voltage - Input 2.3V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part STLED25
Other Names -497-12920,STEVALTLL013V1,497-12920
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283835-STEVAL-TLL013V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL013V1 CAD Model

Description

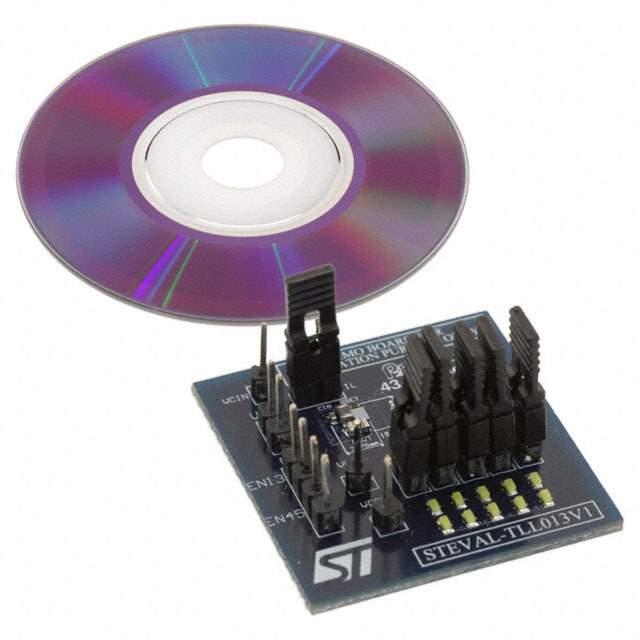

STEVAL-TLL013V1 - LED Array Driver Evaluation Board

The STEVAL-TLL013V1 from STMicroelectronics is a state-of-the-art evaluation board designed for driving LED arrays with high precision and efficiency. This innovative board is based on the STP16CPC26 LED driver IC, which is capable of providing constant current to up to 16 LED channels, ensuring uniform brightness and extending LED life.

This evaluation board is an ideal solution for developers looking to create advanced lighting solutions, as it supports a wide range of applications including LED panels, message displays, and decorative lighting. The board's flexibility allows for easy integration into various design prototypes, making it a versatile tool for engineers and designers alike.

Key Features:

  • Integrated STP16CPC26 LED Driver: The heart of the STEVAL-TLL013V1 is the STP16CPC26 chip, which provides constant current sink for up to 16 LED channels, ensuring consistent luminosity across the array.
  • Adjustable Output Current: With an adjustable output current through external resistors, designers can fine-tune the brightness levels to match specific requirements.
  • Flexible Power Supply: The board operates over a wide range of supply voltages, from 3.3V to 5V, accommodating different power sources and making it suitable for battery-operated devices.
  • Thermal Protection: Built-in thermal shutdown protection prevents damage to the LED driver and the LEDs in case of overheating, enhancing the reliability and longevity of the system.
  • Easy Cascading: Multiple STEVAL-TLL013V1 boards can be cascaded through the serial interface, enabling the control of extensive LED arrays with minimal wiring.
  • Error Detection: The board includes error detection features such as LED open and LED shorted diagnostics, contributing to a robust and reliable design.

The STEVAL-TLL013V1 evaluation board is equipped with a user-friendly interface, including test points and jumper headers for quick setup and experimentation. Whether for professional lighting systems or innovative LED projects, the STEVAL-TLL013V1 provides a flexible and powerful platform for developing cutting-edge LED applications.
