Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr STMicroelectronics
Series UltraFASTmesh™
Package Tube
Current - Continuous Drain (Id) @ 25°C 12A (Tc)
Mounting Type Through Hole

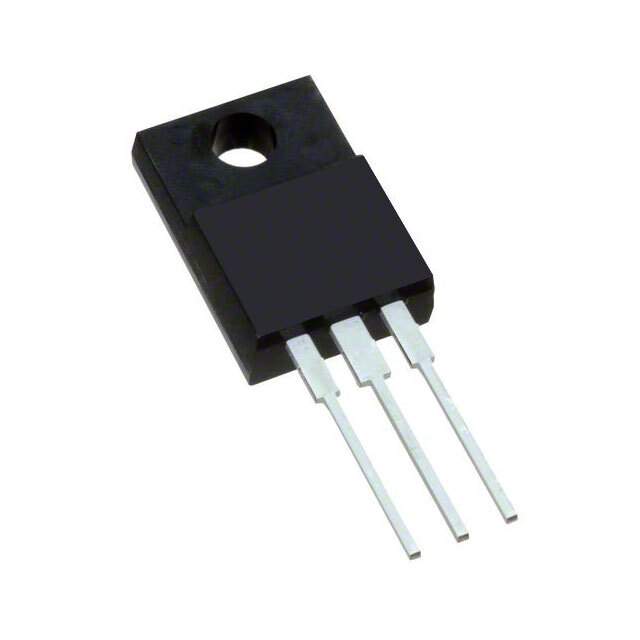

Supplier Device Package TO-220FP
Package / Case TO-220-3 Full Pack
Base Product Number STF16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 497-17547,497-17547-ND,497-STF16N60M6
Standard Package 50
Win Source Part Number 972362-STF16N60M6
Ultra Librarian 3D Model Ultra Librarian STF16N60M6 CAD Model

Description

The STF16N60M6 is a high-performance N-channel Power MOSFET produced by STMicroelectronics, a global leader in semiconductor solutions. This device is part of STMicroelectronics' MDmesh™ M6 series, which is known for its outstanding efficiency and thermal performance. The STF16N60M6 is designed to handle high current and voltage levels, making it ideal for a wide range of power applications such as switch-mode power supplies (SMPS), lighting, welding, and high-efficiency converters.

Key Features

  • High Voltage Capability: With a drain-source voltage (V<sub>DS) of 600V, the STF16N60M6 can handle high-energy applications while providing a safety margin for electrical surges and spikes.
  • Low On-Resistance: The device features an on-resistance (R<sub>DS(on)) as low as 0.190 Ω, reducing conduction losses and improving overall efficiency.
  • Fast Switching Speed: The fast switching characteristics of the STF16N60M6 minimize switching losses and enable high-frequency operation.
  • Reduced Gate Charge: A low gate charge (Q<sub>g) helps to reduce the power required to turn the MOSFET on and off, further enhancing efficiency.
  • Enhanced Avalanche Ruggedness: The MOSFET is designed to withstand high-energy pulses in the avalanche and commutation modes, ensuring reliability under tough conditions.
  • 100% Avalanche Tested: Each unit undergoes rigorous testing to guarantee performance in applications requiring robustness and durability.

Applications

  • Switch-mode power supplies (SMPS)
  • LED lighting systems
  • High-efficiency DC/DC converters
  • Welding equipment
  • Solar inverters
  • Uninterruptible power supplies (UPS)

Package and Quality

The STF16N60M6 is available in a TO-220FP package, providing a compact solution with good thermal performance. STMicroelectronics is committed to delivering high-quality products, and the STF16N60M6 is no exception, meeting stringent industry standards for performance and reliability.
