Products specifications

Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete (End Of Life)
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) at 25°C 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 3mOhm at 60A, 10V
Vgs(th) (Maximum) at Id 4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 183nC at 10V
Maximum Vgs ±20V
Input Capacitance (Ciss) (Maximum) at Vds 11400pF at 25V
Power Dissipation (Maximum) 41.7W (Tc)
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Supplier Device Package I2PAKFP (TO-281)
Manufacturer Package TO-262-3 Full Pack, I2Pak
Part Number Series STFI260N
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804289-STFI260N6F6
Ultra Librarian 3D Model Ultra Librarian STFI260N6F6 CAD Model

Description

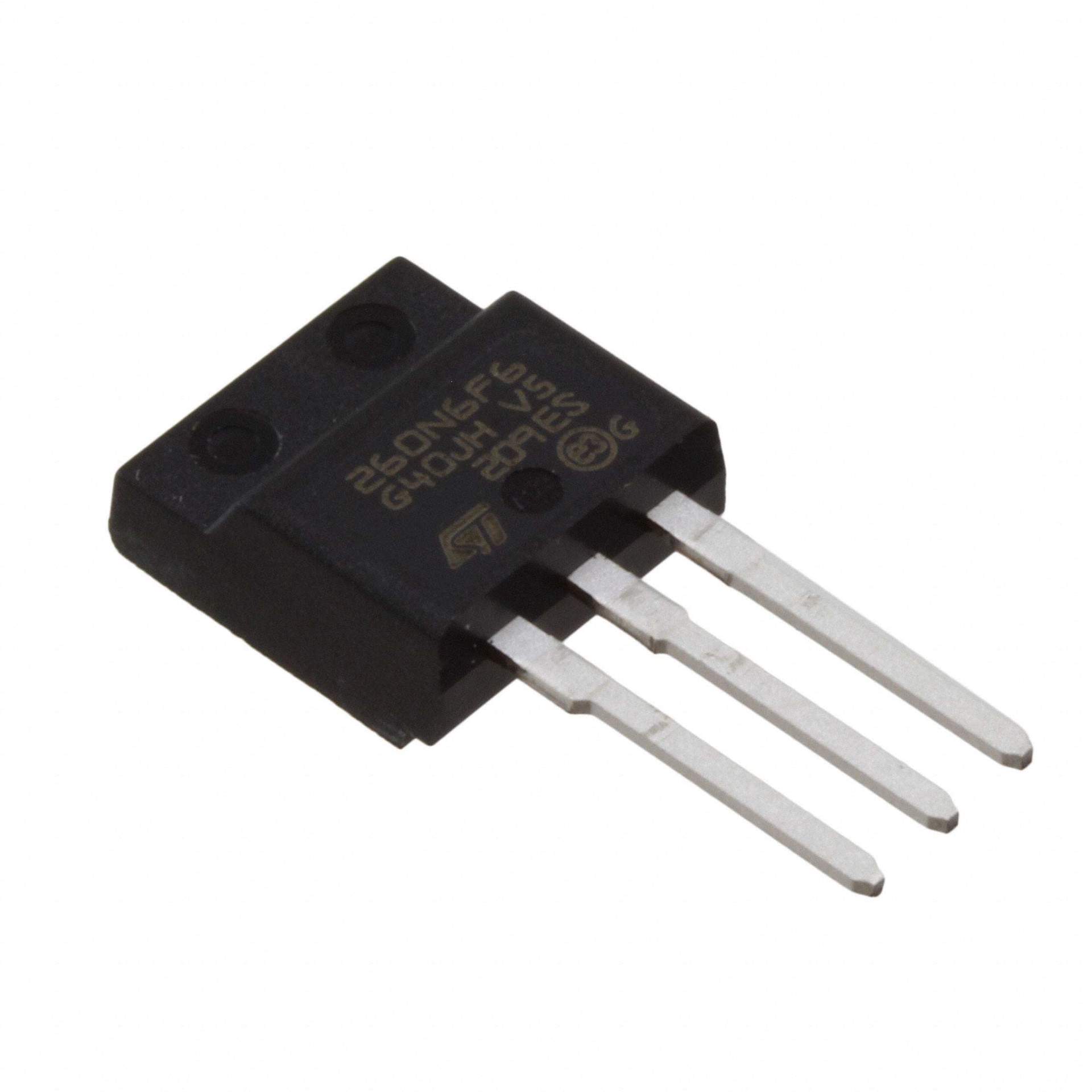

The STFI260N6F6 is a state-of-the-art power MOSFET designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This device is part of the STripFET™ F6 series, which is known for its high efficiency and reliability in power conversion applications.

Key Features

  • High Voltage Capability: With a maximum V<sub>DS of 60V, the STFI260N6F6 can handle high voltage applications with ease.
  • Low On-Resistance: The device boasts an ultra-low on-resistance (R<sub>DS(on)) of just 2.6 mΩ (max), which translates to reduced conduction losses and improved overall efficiency.
  • High Current Rating: It supports a continuous drain current (I<sub>D) of up to 260A, making it suitable for high-power applications.
  • Low Gate Charge: A low gate charge (Q<sub>g) ensures fast switching performance, which is crucial for applications such as DC/DC converters, motor drives, and power management systems.

Applications

The STFI260N6F6 is versatile and can be used in a wide array of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • High Efficiency DC/DC Converters
  • Motor Control Systems
  • Power Management Solutions
  • LED Lighting

Package and Quality

This MOSFET comes in an industry standard ISOTOP package, which is known for its high power dissipation capability and ease of mounting on heat sinks. The package is designed to handle high thermal and electrical stresses, ensuring long-term reliability.

Environmental and Quality Standards

STMicroelectronics is committed to environmental sustainability and quality. The STFI260N6F6 is compliant with RoHS and Halogen-free standards, minimizing the environmental impact. Additionally, it adheres to the highest quality standards, with rigorous testing to ensure performance and durability across various conditions.
