Products specifications Report Issue?

Manufacturer STMicroelectronics
No 365743
Standard Package 11
Category Discrete Semiconductor Products
Family Power Drivers - Modules
Series SLLIMM
Type IGBT
Configuration 3 Phase
Current 17A
Voltage 600V
Voltage - Isolation 2500VDC
Package 25-SDIP Module
Catalog SLLIMM Series
Related Products 732-1583-2 - FERRITE BEAD 600 OHM 0603 1LN 732-1583-1 - FERRITE BEAD 600 OHM 0603 1LN 732-1583-6 - FERRITE BEAD 600 OHM 0603 1LN
Win Source Part Number 037525-STGIPS20K60
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Consumer Electronics, Industrial, Motor Drive & Control
Family Name STGIPS20K60
Introduction Date August 10, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian STGIPS20K60 CAD Model

Description

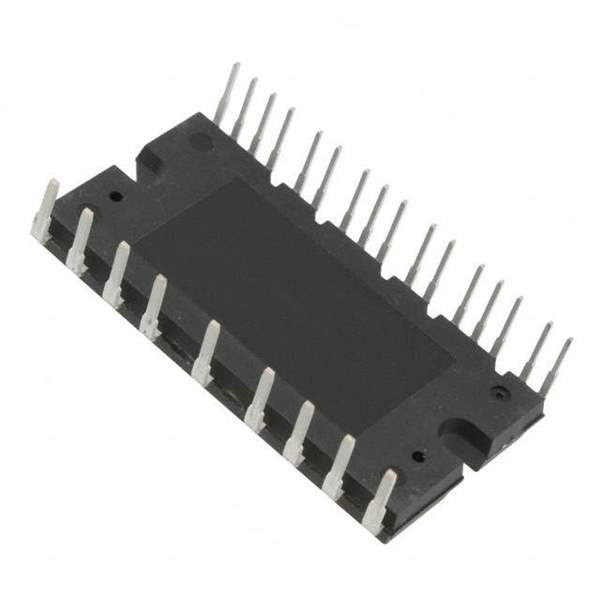

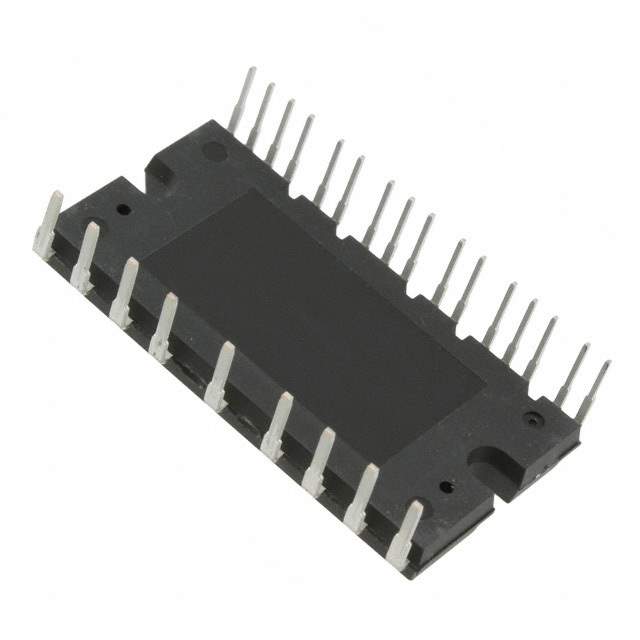

STGIPS20K60 - STMicroelectronics

The STGIPS20K60 is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, one of the leading players in the semiconductor industry. This IPM is part of the SLLIMMâ„¢ (Small Low-Loss Intelligent Molded Module) series, which is known for its high efficiency and reliability. The STGIPS20K60 is particularly suitable for a wide range of applications, including motor drives, air conditioners, washing machines, fans, and other home appliances that require efficient power conversion and control.

With a maximum rating of 600V and 20A, the STGIPS20K60 offers a robust solution for three-phase inverter applications. It integrates a three-phase IGBT inverter with gate drivers and protection features into a compact, fully molded package. This integration not only simplifies the design and reduces the overall footprint of the power circuit but also enhances system performance through improved thermal management and lower electromagnetic interference (EMI).

The module features Short-Circuit Rugged IGBTs, which provide enhanced robustness and longevity. It also includes Under-Voltage Lockout (UVLO) for both high-side and low-side channels, ensuring the module operates only when the supply voltage is adequate. Additionally, the STGIPS20K60 comes equipped with Smart ShutDown (SSD) functionality for immediate turn-off in case of fault conditions, thereby offering an extra layer of protection for the end application.

The built-in temperature feedback enables the system to monitor the module's temperature, ensuring safe operation and preventing thermal overload. The module's gate drivers are optimized for low power consumption and can be directly driven by microcontrollers or DSPs, facilitating easy integration into a variety of control schemes.

STMicroelectronics has also taken care to design the STGIPS20K60 with a focus on ease of use. It features an isolated thermally conductive baseplate, which simplifies the mounting process and enhances thermal dissipation. Furthermore, the module's lead-free terminals are compliant with RoHS standards, making it a sustainable choice for environmentally conscious applications.

Overall, the STGIPS20K60 is an exceptional choice for designers seeking a high-performance, reliable, and user-friendly power module for their next motor control project.
