STH275N8F7-2AG - High-Performance Power MOSFET by STMicroelectronics

The STH275N8F7-2AG is a cutting-edge power MOSFET device designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This product stands out for its remarkable efficiency and reliability, making it an ideal choice for a wide range of power applications. The STH275N8F7-2AG is part of STMicroelectronics' STripFET F7 series, which is known for its low on-resistance and low gate charge, contributing to its high efficiency.

Featuring an advanced trench gate structure, the STH275N8F7-2AG ensures optimal on-state resistance (R<sub>DS(on)) with a maximum of just 0.0028 ohms at a gate drive of 10V. This low R<sub>DS(on) minimizes conduction losses, which is particularly beneficial for applications requiring high current handling capabilities. The device is capable of supporting a continuous drain current (I<sub>D) of up to 120A, making it robust enough for demanding power conversion tasks.

The STH275N8F7-2AG operates over a wide voltage range, with a maximum drain-source voltage (V<sub>DS) of 80V, providing a comfortable margin for applications that may experience voltage spikes or surges. Its threshold voltage (V<sub>GS(th)) is specified between 2.0V and 4.0V, allowing for flexible gate drive designs.

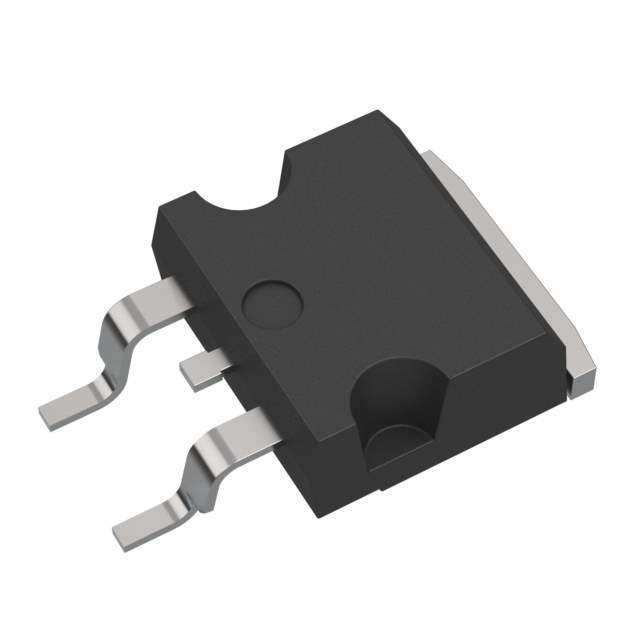

The power MOSFET comes in a compact and robust H2PAK-2 package, which not only ensures a small footprint on the PCB but also provides excellent thermal performance. The package is designed to handle high thermal and mechanical stresses, which contributes to the device's longevity and reliability in harsh environments.

Applications for the STH275N8F7-2AG are diverse and include high-efficiency DC-DC converters, synchronous rectification in SMPS (Switched Mode Power Supplies), motor control systems, and other power management tasks where efficiency and thermal performance are critical. Its performance characteristics also make it suitable for automotive applications, adhering to stringent industry standards.

Overall, the STH275N8F7-2AG from STMicroelectronics represents a blend of efficiency, power handling, and reliability, making it a top choice for designers seeking to optimize their power management solutions.
