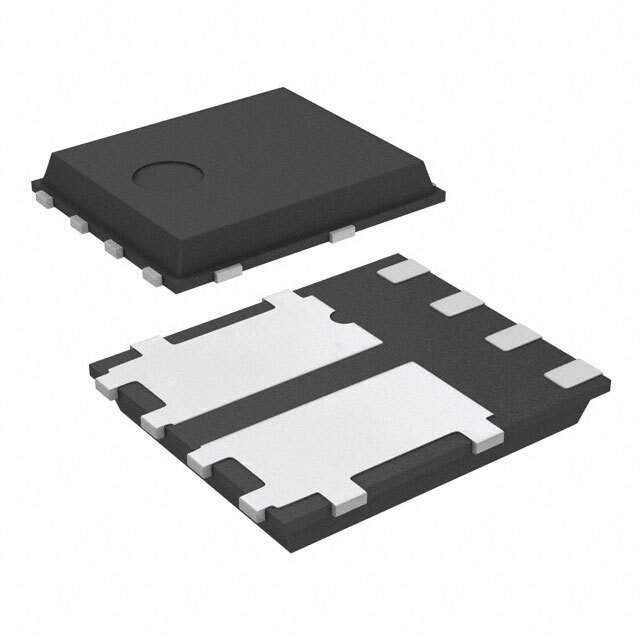

The STL40C30H3LL is a cutting-edge power MOSFET designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and high-performance components. This particular MOSFET is part of the STripFET™ H3 series, which is renowned for its low on-state resistance and high switching performance.

Key Features

• Low Threshold Voltage: The device has a low gate threshold voltage, making it suitable for low-voltage applications and ensuring efficient operation at low gate voltages.
• High Current Capability: With a continuous drain current of up to 40A, the STL40C30H3LL is capable of handling high current loads, making it ideal for power-intensive applications.
• Low On-Resistance: The low on-state resistance (R<sub>DS(on)) minimizes conduction losses and enhances overall efficiency, which is critical for power management in compact electronic systems.
• High Switching Speed: The fast switching characteristics of this MOSFET make it an excellent choice for high-frequency power switching applications, contributing to reduced switching losses.
• 100% Avalanche Tested: Ensuring reliability and robustness, each device is tested for avalanche energy capability, thereby guaranteeing safe operation under extreme conditions.

Applications

The STL40C30H3LL is versatile and can be used in a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Automotive Applications
• High-Efficiency Power Management Systems

Environmental and Quality Certifications

STMicroelectronics is committed to environmental sustainability and quality. The STL40C30H3LL complies with various international standards, including:

• RoHS Directive
• REACH Regulation
• ST’s ECOPACK® specifications for environmentally friendly manufacturing

In conclusion, the STL40C30H3LL from STMicroelectronics represents a blend of efficiency, performance, and reliability, making it a top choice for designers seeking to optimize their power management solutions.
