Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series STM32 F4
Packaging Tray
Core Processor ARM Cortex-M4
Core Size 32-Bit
Speed 180MHz
Connectivity CAN, EBI/EMI, I2C, IrDA, LIN, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 140
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 256K x 8
Supply Voltage 1.8 V ~ 3.6 V
Data Converters A/D 24x12b, D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 176-LQFP
Manufacturer Package 176-LQFP (24x24)
Win Source Part Number 708480-STM32F429IIT6
Series TPS series
Family Name STM32F429II
ECCN 3A991.a.2
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STM32F429IIT6 CAD Model

Description

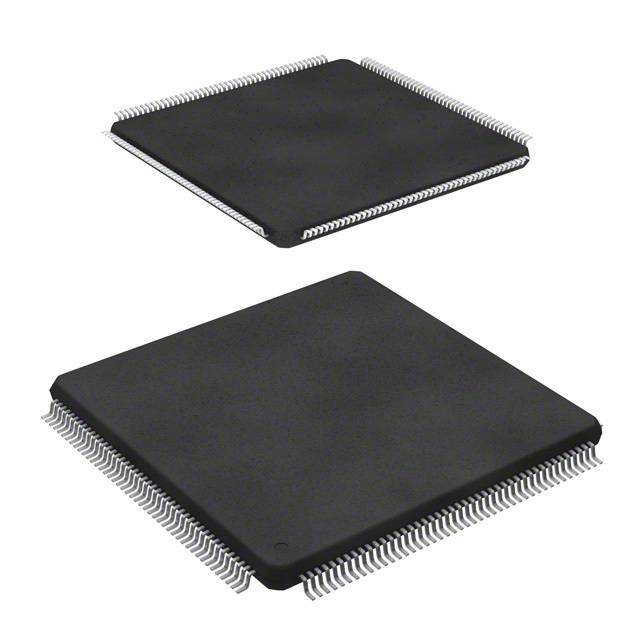

STM32F429IIT6 Microcontroller by STMicroelectronics

The STM32F429IIT6 is a high-performance microcontroller unit (MCU) from STMicroelectronics, which belongs to the STM32F4 series, renowned for its advanced ARM Cortex-M4 core. This MCU is designed to offer an ideal balance between processing power, reduced power consumption, and advanced peripherals, making it a perfect choice for a wide range of applications including industrial control, medical equipment, and consumer electronics.

Main Features

  • Core: ARM Cortex-M4 with Floating Point Unit (FPU) operating at frequencies up to 180 MHz.
  • Memory: Equipped with 2MB of flash memory and 256KB of SRAM, which allows for efficient code and data management.
  • Display Interface: Includes an LCD-TFT controller that supports up to XGA resolution, enabling the creation of sophisticated user interfaces.
  • Advanced Connectivity: Offers a range of communication interfaces such as I2C, SPI, UART, CAN, and USB OTG with full-speed and high-speed capabilities.
  • Rich Analog Features: Features 3x 12-bit ADCs, 2x DACs, and a range of timers and other analog peripherals for versatile signal management.
  • Enhanced I/Os: Up to 168 I/O ports with interrupt capability, which allows for easy expansion and control of external devices.
  • Security: Incorporates features like a memory protection unit (MPU), a hardware random number generator (RNG), and a CRC calculation unit to ensure system integrity.
  • Power Efficiency: Supports multiple power-saving modes, including a Stop mode that reduces power consumption to a few microamps.

Development Support

The STM32F429IIT6 is supported by a comprehensive set of development tools, including the STM32Cube software development kit (SDK), which provides HAL and LL APIs, middleware solutions, and real-time operating system (RTOS) support. Additionally, STMicroelectronics offers an extensive ecosystem of development boards, software examples, and documentation to accelerate the development process.

Applications

With its advanced graphics capabilities, significant data processing power, and versatile set of peripherals, the STM32F429IIT6 MCU is well-suited for complex and demanding applications such as:

  • Advanced motor control systems
  • Industrial automation and control
  • Medical devices and healthcare systems
  • High-end consumer electronics
  • Internet of Things (IoT) devices

The STM32F429IIT6 is a testament to STMicroelectronics' commitment to providing robust and high-performance microcontrollers that meet the evolving needs of modern embedded systems.
