Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tray
Product Status Obsolete
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 180MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 168
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 256K x 8
Supply Voltage - Operating 1.8V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 216-TFBGA
Supplier Device Package 216-TFBGA (13x13)
Base Product Number STM32F429
Standard Package 960
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262763-STM32F429NIH6J
Ultra Librarian 3D Model Ultra Librarian STM32F429NIH6J CAD Model

Description

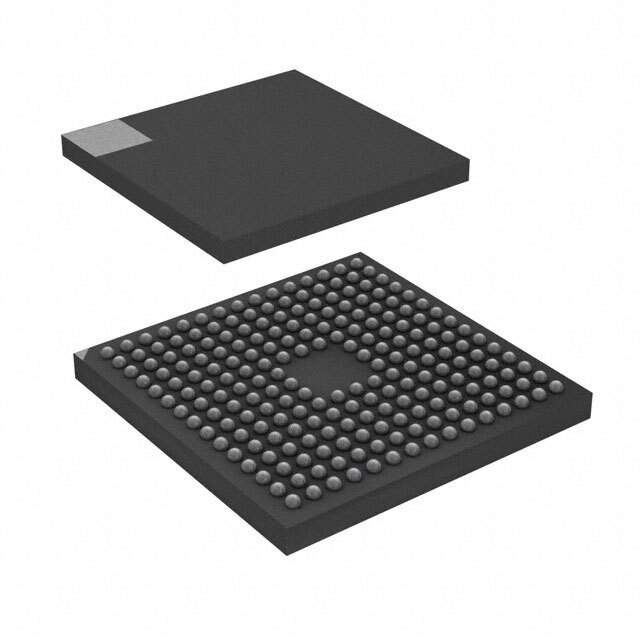

STM32F429NIH6J Microcontroller Overview

The STM32F429NIH6J is a high-performance microcontroller from STMicroelectronics, which is part of their STM32F4 series based on the ARM Cortex-M4 processor. This advanced microcontroller is designed for embedded applications requiring a rich variety of features and significant processing power. With its 180 MHz CPU, floating point unit (FPU), and large on-chip memory, the STM32F429NIH6J is suitable for a wide range of applications, including industrial control, medical devices, and consumer electronics.

Key Features

  • Core: ARM Cortex-M4 with FPU and frequency up to 180 MHz.
  • Memory: 2 MB of flash memory and 256+4 KB of SRAM, which provides ample space for complex applications.
  • Display Interface: Supports LCD-TFT display controller, making it an excellent choice for graphical user interfaces.
  • Communication: A rich set of I/Os and peripherals, including up to 17 timers, up to three I2C interfaces, up to six SPIs, up to four USARTs, and up to two CANs.
  • Advanced Connectivity: Integrated USB OTG Full-Speed and High-Speed with on-chip PHY.
  • Power Efficiency: Low-power modes for energy-saving operations, suitable for battery-powered applications.

Advanced Graphics and Security

The STM32F429NIH6J also features the Chrom-ART Acceleratorâ„¢ for enhanced graphics performance, allowing for efficient 2D image manipulation which is particularly useful for user interface creation. In terms of security, the device includes a True Random Number Generator (TRNG) and offers support for hardware cryptographic acceleration, ensuring secure data communication and storage.

Development Support

Developers can take advantage of comprehensive development tools provided by STMicroelectronics, such as the STM32Cube software development kit, which includes HAL, middleware libraries, and examples. The microcontroller is also supported by a wide range of integrated development environments (IDEs) and toolchains, making it a flexible choice for both professional engineers and hobbyists.

With its high level of integration, robust design, and versatile features, the STM32F429NIH6J is a reliable microcontroller that can meet the demands of complex and sophisticated embedded systems.
