Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F7
Package Tape & Reel
Product Status Active
Programmable Not Verified
Core Processor ARM® Cortex®-M7
Core Size 32-Bit Single-Core
Speed 216MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 168
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 1.7V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 216-TFBGA
Supplier Device Package 216-TFBGA (13x13)
Base Product Number STM32F765
Standard Package 1,600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 851908-STM32F765NIH6TR
Ultra Librarian 3D Model Ultra Librarian STM32F765NIH6TR CAD Model

Description

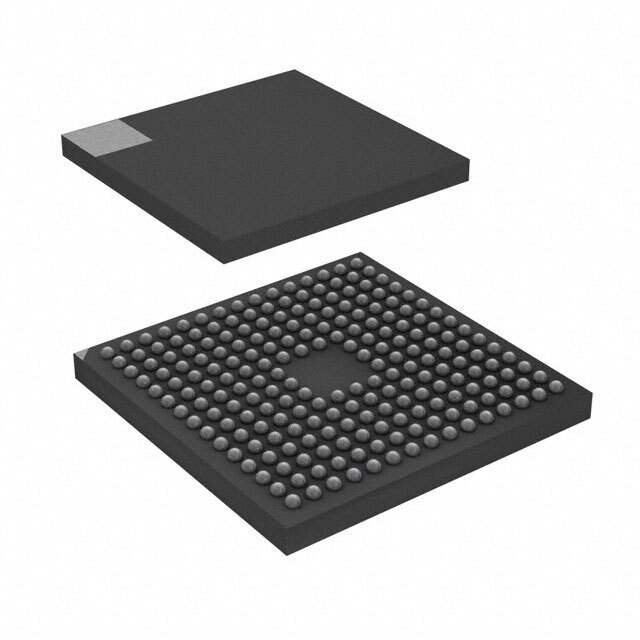

STM32F765NIH6TR Microcontroller from STMicroelectronics

The STM32F765NIH6TR is a high-performance microcontroller unit (MCU) from STMicroelectronics, which is part of their advanced STM32F7 series. This device is designed to offer the best balance between performance, power efficiency, and cost, making it a suitable choice for a wide range of applications, including industrial control systems, medical devices, complex IoT hubs, and high-end consumer products.

At the heart of the STM32F765NIH6TR is an ARM Cortex-M7 processor core, which operates at frequencies of up to 216 MHz. This core features a single-precision floating-point unit (FPU), which provides the computational power necessary to handle complex algorithms and signal processing tasks with ease. Additionally, the MCU includes a L1-cache, enhancing execution speed and system performance.

The microcontroller comes equipped with a substantial amount of integrated memory, including up to 2 MB of flash memory and 512 KB of SRAM, which is ample for storing application code and data. The device also supports a range of enhanced I/Os and peripherals, such as multiple UARTs, SPI, I2C interfaces, CAN, and USB OTG with full-speed and high-speed capabilities.

For connectivity, the STM32F765NIH6TR offers Ethernet and camera interfaces, which enable the development of sophisticated networked systems and multimedia solutions. Its advanced graphics features, including the Chrom-ART Accelerator™, ensure efficient 2D graphic acceleration, which is essential for human-machine interface (HMI) applications.

Security is a critical aspect of modern MCUs, and the STM32F765NIH6TR addresses this with features like a hardware cryptographic acceleration unit, a random number generator, and sector protection against read/write operations, ensuring the integrity and confidentiality of the application data.

The MCU is provided in a BGA package, which is ideal for space-constrained applications, and is available in a temperature range of -40°C to +105°C, making it suitable for deployment in harsh environments. The STM32F765NIH6TR also supports the use of ST's extensive STM32 ecosystem, including development tools, software libraries, and community resources, which accelerates the development process and reduces time to market.

Overall, the STM32F765NIH6TR is a robust and versatile MCU that offers the processing power, rich set of peripherals, and advanced features necessary for demanding applications that require high-speed operation, connectivity, and reliability.
