Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 650MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps, GbE
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Security Features ARM TZ

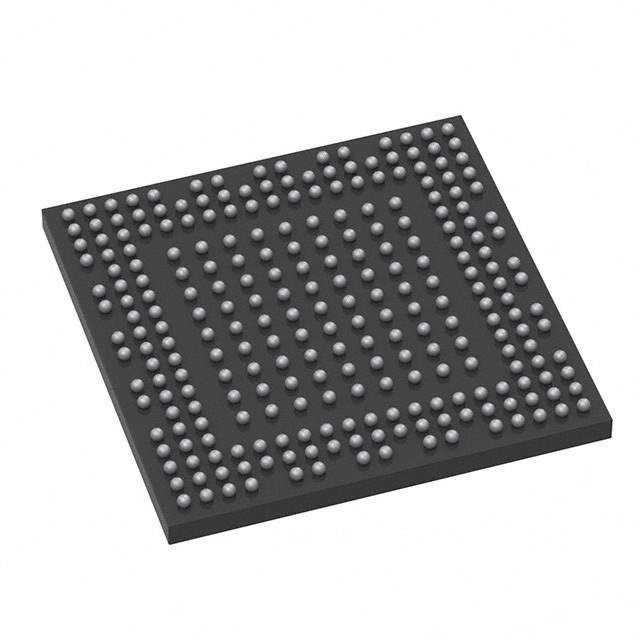

Package / Case 257-TFBGA
Supplier Device Package 257-TFBGA (10x10)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-19500
Standard Package 184
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261856-STM32MP157AAD3
Ultra Librarian 3D Model Ultra Librarian STM32MP157AAD3 CAD Model

Description

STM32MP157AAD3 Microprocessor Overview

The STM32MP157AAD3 is a highly capable microprocessor from STMicroelectronics that targets a range of applications, from industrial to consumer electronics. This dual-core microprocessor is part of the STM32MP1 series, which is designed to offer a balance between performance, power consumption, and cost-effectiveness.

Key Features

  • Dual ARM Cortex-A7 Cores: The STM32MP157AAD3 operates with two ARM Cortex-A7 cores running up to 800 MHz, providing the computational power needed for complex tasks and multitasking.
  • Cortex-M4 Core: In addition to the Cortex-A7 cores, this microprocessor includes a Cortex-M4 core with a floating-point unit, which can run up to 209 MHz. This allows for real-time task management and processing.
  • Advanced Peripherals: It comes with a wide range of peripherals, including multiple timers, UARTs, SPI, I2C interfaces, and a camera interface, enabling it to handle various I/O tasks with ease.
  • 3D GPU: The inclusion of a Vivante 3D GPU provides the capability for rich graphical user interfaces and enhanced visual experiences.
  • Security Features: Security is a priority, and the STM32MP157AAD3 includes features such as a TrustZone for ARMv7-M, cryptographic acceleration, and secure boot.

Applications

The versatile nature of the STM32MP157AAD3 makes it suitable for a wide array of applications, including:

  • Industrial control systems
  • Home automation
  • Medical devices
  • Advanced navigation systems
  • Internet of Things (IoT) devices

Development Support

STMicroelectronics provides extensive support for the STM32MP157AAD3 with a comprehensive development ecosystem. This includes the STM32Cube software suite, which helps streamline the development process, and a variety of development boards to facilitate prototyping and testing.

With its powerful cores, rich set of peripherals, and advanced security features, the STM32MP157AAD3 is an excellent choice for designers looking to create sophisticated and secure embedded systems.
