Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 650MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps, GbE
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TA)
Security Features ARM TZ

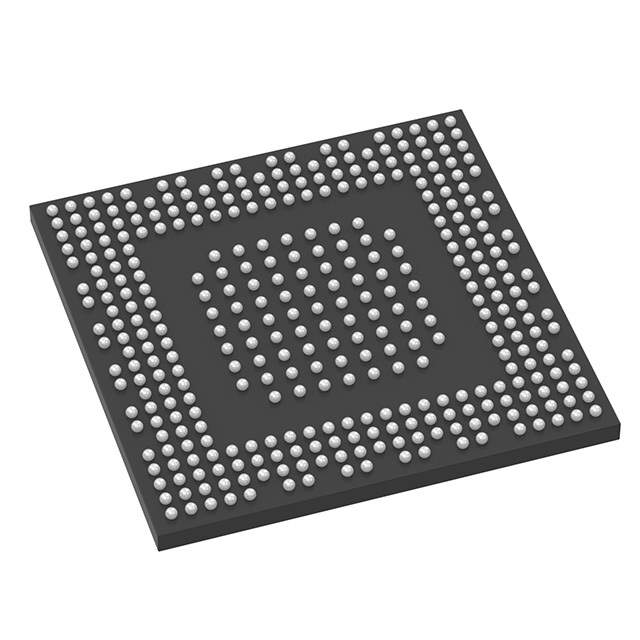

Package / Case 354-LFBGA
Supplier Device Package 354-LFBGA (16x16)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Standard Package 504
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1261859-STM32MP157CAB3
Ultra Librarian 3D Model Ultra Librarian STM32MP157CAB3 CAD Model

Description

The STM32MP157CAB3 is a powerful and versatile microprocessor from STMicroelectronics, designed to cater to a wide range of applications that require high computing power, real-time functionalities, and low-power operation. This microprocessor is part of the STM32MP1 series, which is known for its dual-core architecture featuring both an Arm® Cortex®-A7 core and a Cortex®-M4 core.

Key Features

  • Dual-core configuration: The STM32MP157CAB3 boasts a dual-core design with an Arm® Cortex®-A7 core running up to 800 MHz and a Cortex®-M4 core operating up to 209 MHz. This unique architecture allows for efficient multitasking and real-time processing capabilities.
  • Advanced Graphics Support: With its 3D GPU, the processor is capable of driving advanced graphics for user interfaces and applications, making it ideal for embedded systems that require a graphical display.
  • Rich Connectivity: The device offers a plethora of connectivity options, including multiple USB 2.0 ports, Ethernet, camera interface, audio support, and a variety of serial interfaces.
  • Flexible Memory Options: It supports a range of external memory interfaces, including DDR3L, LPDDR2, LPDDR3, and eMMC, providing designers with flexibility in memory choice for their applications.
  • Robust Security Features: With a focus on security, the STM32MP157CAB3 includes features such as hardware cryptographic acceleration, secure boot, and a TrustZone® for ARMv7-M.

Applications

The STM32MP157CAB3 is suitable for a wide array of applications due to its high-performance cores and rich set of peripherals. It is ideal for use in industrial control systems, consumer electronics, Internet of Things (IoT) devices, medical equipment, and home automation systems.

Development and Ecosystem

STMicroelectronics provides comprehensive support for the STM32MP157CAB3 with a well-developed ecosystem, including software tools, development boards, and a strong community. Developers can take advantage of the STM32Cube software suite, which includes a Hardware Abstraction Layer (HAL), middleware components, and examples to accelerate the development process.
