Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 19 Weeks
Features STM8A series Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 20-TSSOP
Manufacturer STMicroelectronics
Series Automotive, AEC-Q100, STM8A
Package Reel - TR
Core Processor STM8A
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 16
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
EEPROM Size 640 x 8
Supply Voltage 3V ~ 5.5V
Data Converters A/D 5x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 20-TSSOP (0.173", 4.40mm Width)
Case / Package 20-TSSOP
Family Name STM8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Other Part Number STM8AF6223PCX-ND, 497-19683-6, 497-19683-2, 497-19683-1
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 935505-STM8AF6223PCX
Ultra Librarian 3D Model Ultra Librarian STM8AF6223PCX CAD Model

Description

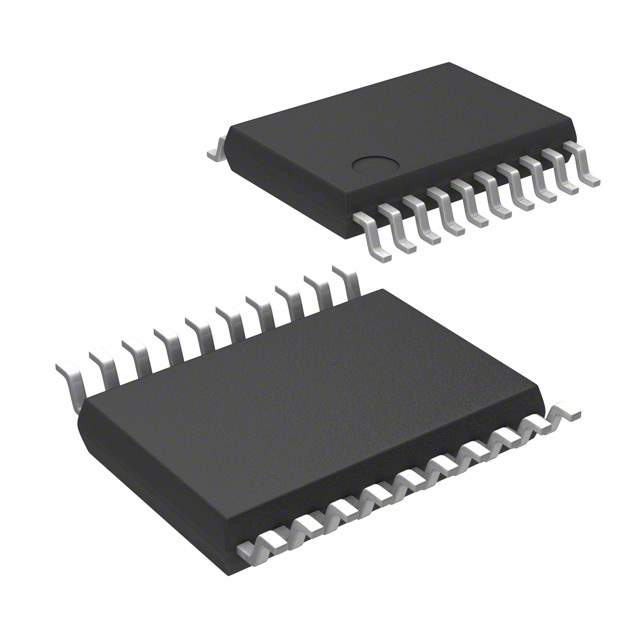

STM8AF6223PCX Microcontroller by STMicroelectronics

The STM8AF6223PCX is a highly integrated microcontroller from STMicroelectronics, tailored for automotive and industrial applications. This robust 8-bit MCU is part of the STM8A series, designed to deliver outstanding performance with low power consumption, making it an ideal choice for a wide range of embedded systems.

Key Features

  • Advanced STM8 Core: Operating at up to 16 MHz, the STM8 core ensures efficient processing capabilities with its advanced architecture, allowing for swift execution of instructions and real-time operations.
  • Memory: Equipped with 8 KB of Flash memory, 1 KB of RAM, and 128 bytes of EEPROM, the STM8AF6223PCX offers ample space for application code and data storage, along with the flexibility of in-application programming and data retention across power cycles.
  • Rich Peripherals: The MCU includes a variety of integrated peripherals such as UART, SPI, and I2C interfaces for serial communication, 10-bit ADC for analog signal conversion, and multiple general-purpose and advanced-control timers for timing-related tasks.
  • Robust I/Os: With up to 28 GPIO pins, the device provides versatile options for interfacing with sensors, actuators, and other electronic components, supporting a broad range of functionalities in embedded systems.
  • Automotive Qualification: The STM8AF6223PCX meets automotive qualification standards, ensuring reliability and performance under the stringent conditions typical of automotive environments.
  • Low-Power Modes: Multiple low-power modes, including Active-Halt and True Power-Down, offer significant power savings, which is crucial for battery-operated and energy-conscious applications.

Applications

The STM8AF6223PCX is well-suited for various applications within the automotive sector, including body control modules, sensors, and dashboards. Its robust design and feature set also make it a great choice for industrial control systems, home appliances, and consumer electronics.

Package and Availability

Available in a 32-pin LQFP package, the STM8AF6223PCX provides a compact footprint for space-constrained applications. STMicroelectronics supports this microcontroller with a comprehensive development ecosystem, including software tools, evaluation boards, and documentation to accelerate the design and development process.

For detailed technical specifications and application support, visit the STMicroelectronics website or contact their support team.
