Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr STMicroelectronics
Series STM8S
Package Bulk
Board Type Evaluation Platform
Type MCU 8-Bit
Core Processor STM8
Platform Discovery
Utilized IC / Part STM8S003K3
Mounting Type Fixed
Contents Board(s)
Base Product Number STM8
Other Names 497-12073
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8543.90.6800
Win Source Part Number 1283935-STM8SVLDISCOVERY
Ultra Librarian 3D Model Ultra Librarian STM8SVLDISCOVERY CAD Model

Description

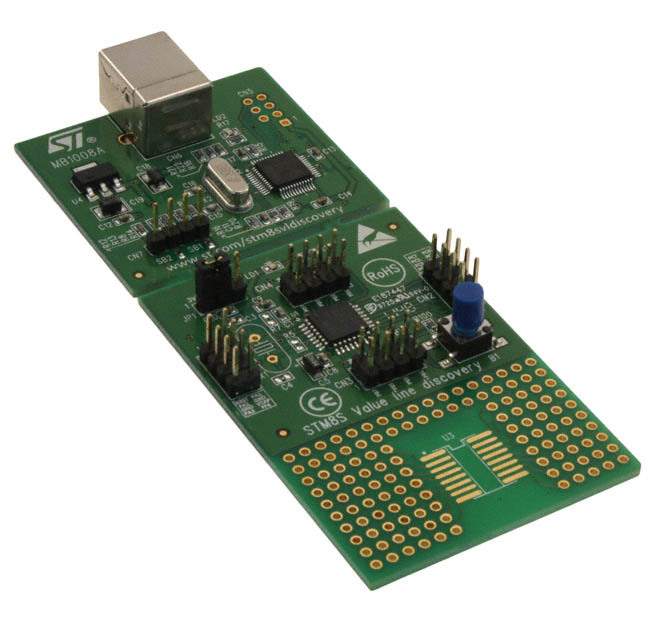

STM8SVLDISCOVERY Kit by STMicroelectronics

The STM8SVLDISCOVERY is an enticing development tool introduced by STMicroelectronics that allows both professionals and enthusiasts to discover the features and capabilities of the STM8S Value Line microcontrollers in a convenient and user-friendly manner. This discovery kit is designed to help developers unleash the full potential of the STM8S003K3T6C microcontroller, which lies at the heart of the development board.

Key Features

  • STM8S003K3T6C Microcontroller: At the core of the STM8SVLDISCOVERY lies the robust STM8S003K3T6C MCU, which offers an optimal balance of performance, power consumption, and peripherals.
  • On-board ST-Link Debugger/Programmer: The kit includes an integrated ST-Link debugger/programmer, which facilitates programming and debugging without the need for additional hardware.
  • Expandability: A comprehensive set of GPIOs and an extension header are available for easy connection to other boards or devices, making it a versatile platform for various applications.
  • LED and Push-Button: An embedded user LED and a push-button provide an interactive hardware interface for testing and prototyping.
  • USB Powered: The discovery kit is conveniently powered through a USB connection, ensuring ease of use and mobility.
  • Touch Sensing Capability: Included touch-sensing buttons demonstrate the MCU's capacitive sensing functionality, offering a modern interface option.

Applications

The STM8SVLDISCOVERY is not only a learning platform but also a starting point for a wide range of applications. It is ideal for developing and testing embedded applications, such as consumer electronics, home appliances, industrial control systems, and automotive subsystems. Its rich set of features and low cost make it suitable for rapid prototyping and experimentation.

Software Support

STMicroelectronics provides comprehensive software support for the STM8SVLDISCOVERY, including the STM8S series standard peripheral libraries, which offer a rich repository of examples and drivers to jumpstart development. The development kit is also supported by major integrated development environments (IDEs) such as STVD, IAR-EWSTM8, and Cosmic STM8 C Compiler.

Whether you are a seasoned developer or a hobbyist, the STM8SVLDISCOVERY discovery kit is an excellent tool to explore the capabilities of STM8S microcontrollers and bring your innovative ideas to life.
