Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Series Automotive, AEC-Q101, ECOPACK®2
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 560 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 60 V
Mounting SMD (SMT)

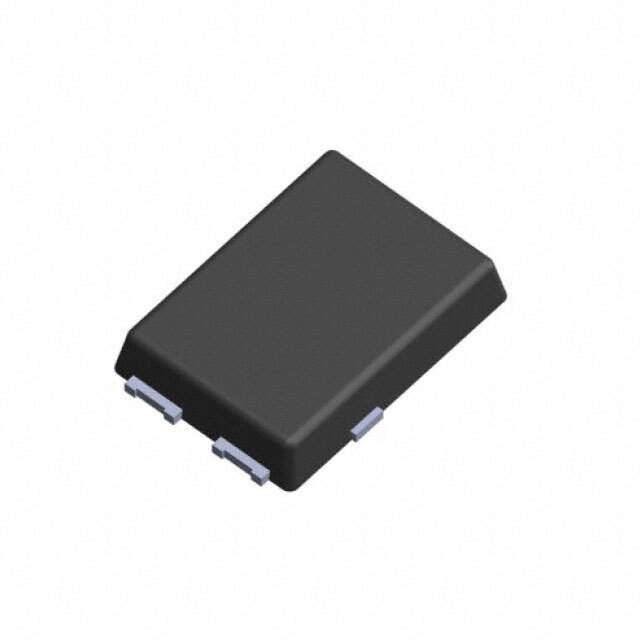

Package / Case TO-277, 3-PowerDFN
Supplier Device Package TO-277A (SMPC)
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number STPS560
Other Names 497-19460-2,497-19460-6,497-19460-1
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282018-STPS560SFY
Ultra Librarian 3D Model Ultra Librarian STPS560SFY CAD Model

Description

STPS560SFY - Power Schottky Rectifier

The STPS560SFY is a high-performance power Schottky rectifier designed and manufactured by STMicroelectronics, a global semiconductor leader. This component is particularly well-suited for switch-mode power supplies and high-frequency DC to DC converters, thanks to its low forward voltage drop and high switching speed.

Encapsulated in an insulated TO-220 FullPak package, the STPS560SFY offers excellent thermal performance and a high level of insulation, which makes it a reliable choice for various applications where electrical isolation is critical. The FullPak package also ensures easier handling and installation, as it does not require additional insulation pads or sleeves.

With a repetitive peak reverse voltage (VRRM) of 60V and an average forward current (IF(AV)) of 5A, the STPS560SFY is capable of handling moderate power requirements efficiently. Its low forward voltage drop reduces power losses, which enhances the overall efficiency of the system it is integrated into. This characteristic is particularly beneficial in portable devices and applications where energy conservation is paramount.

The STPS560SFY also features a junction capacitance that is optimized for minimal noise, making it an excellent choice for noise-sensitive applications, such as precision instrumentation and audio equipment. Its fast switching capability ensures that the rectifier can cope with high-frequency operations without significant losses, which is essential for modern, compact power supply designs.

Safety and reliability are key aspects of the STPS560SFY design. It has a high surge current capability, which allows it to withstand transient overloads without failure. Additionally, the device is characterized by its low leakage current, which contributes to the overall stability and longevity of the systems it is used in.

In summary, the STPS560SFY from STMicroelectronics is a robust and efficient power Schottky rectifier that offers designers a combination of performance, reliability, and ease of use. Whether for industrial, computing, or consumer electronics, this component is an excellent choice for a wide range of power rectification applications.
