Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Series ECOPACK®2
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 60 µA @ 1200 V
Capacitance @ Vr, F 725pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-247-2 (Straight Leads)
Supplier Device Package DO-247
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number STPSC10
Other Names 497-17639
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281975-STPSC10H12WL
Ultra Librarian 3D Model Ultra Librarian STPSC10H12WL CAD Model

Description

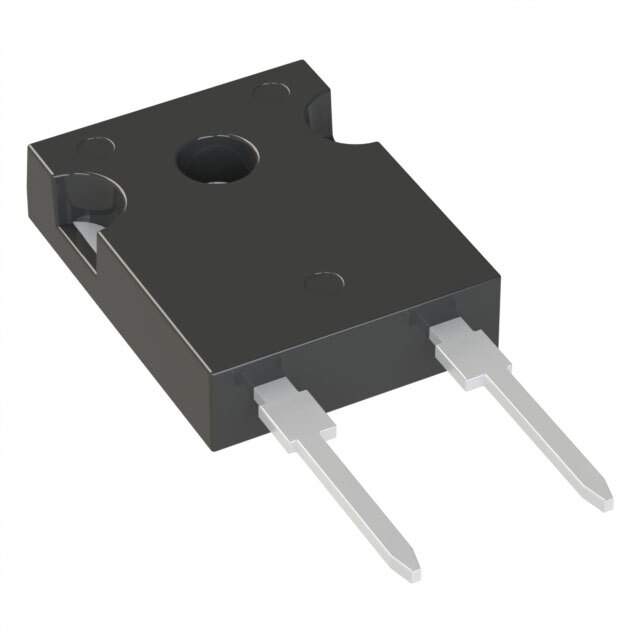

STPSC10H12WL - Silicon Carbide Power Schottky Diode

The STPSC10H12WL from STMicroelectronics is a cutting-edge Silicon Carbide Power Schottky Diode that is designed to offer superior performance in power electronics systems. This diode is part of the ST's SiC diode family, which is renowned for its high-efficiency, low power loss, and thermal stability.

With a voltage rating of 1200V and a forward current of 10A, the STPSC10H12WL is well-suited for a variety of applications, including power supplies, solar inverters, and motor drives. Its ability to handle high surge currents makes it an excellent choice for circuits that require robust and reliable components.

The STPSC10H12WL boasts a no-reverse recovery charge, which greatly reduces switching losses and enhances the efficiency of the power conversion system. This feature, combined with a low forward voltage drop, ensures that the diode operates coolly, leading to a longer lifespan and reduced cooling requirements.

One of the key advantages of Silicon Carbide technology is its ability to operate at higher temperatures than traditional silicon-based diodes. The STPSC10H12WL can function at junction temperatures up to 175°C, making it ideal for high-temperature environments and applications where thermal management is a concern.

Moreover, the diode's package is designed to be user-friendly and is compatible with standard assembly processes. The STPSC10H12WL comes in a surface-mount PowerFLAT™ package, which not only saves space but also provides excellent thermal performance and mechanical ruggedness.

STMicroelectronics has ensured that the STPSC10H12WL meets the stringent quality and reliability standards expected by the industry. This diode is a testament to ST's commitment to providing innovative semiconductor solutions that push the boundaries of energy efficiency and performance.

Whether you are developing energy-saving power converters or looking for reliable components for high-power applications, the STPSC10H12WL Silicon Carbide Power Schottky Diode is an excellent choice that combines state-of-the-art SiC technology with practical design considerations.
