Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Series ECOPACK®2
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 20 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 120 µA @ 1200 V
Capacitance @ Vr, F 1650pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-247-2 (Straight Leads)
Supplier Device Package DO-247
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number STPSC20
Other Names 497-17641
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281973-STPSC20H12WL
Ultra Librarian 3D Model Ultra Librarian STPSC20H12WL CAD Model

Description

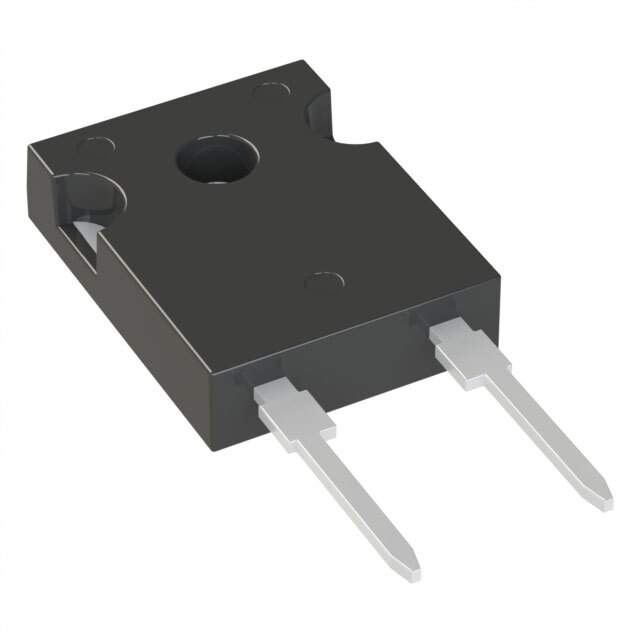

The STPSC20H12WL from STMicroelectronics is a robust silicon carbide (SiC) power Schottky diode, designed to offer superior performance in power electronics systems. This diode is a member of ST's SiC diode family, which is renowned for its high-efficiency and high-voltage capabilities. The STPSC20H12WL is particularly suited for applications that require fast switching, low losses, and high thermal performance.

Key Features

  • Voltage Rating: The diode has a repetitive peak reverse voltage (V<sub>RRM) of 1200V, making it suitable for high-voltage applications.
  • Current Capacity: It can handle an average forward current (I<sub>F(AV)) of 20A, providing ample current for a wide range of power applications.
  • Low Forward Voltage Drop: The STPSC20H12WL features a low forward voltage drop (V<sub>F), which enhances the overall efficiency of the system by reducing conduction losses.
  • High Switching Speed: With its fast-switching capabilities, this diode minimizes switching losses and improves the performance of power conversion systems.
  • High-Temperature Operation: The device is capable of operating at high junction temperatures, offering reliable performance even under extreme conditions.
  • Package: Housed in a high-performance TO-247 long leads package, the STPSC20H12WL is designed for optimal heat dissipation and mechanical robustness.

Applications

The STPSC20H12WL is ideal for a variety of applications where efficiency and reliability are paramount. These include:

  • Switch Mode Power Supplies (SMPS)
  • Power Factor Correction (PFC) circuits
  • High-frequency converters and inverters
  • Energy storage systems
  • Electric vehicle (EV) charging stations
  • Photovoltaic inverters

By utilizing the STPSC20H12WL diode, designers can achieve compact, high-performance power conversion systems that meet the stringent requirements of modern electronic devices. Its superior thermal characteristics also ensure reliability and longevity, making it a preferred choice for cutting-edge power electronics solutions.
