Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STR7
Package Tray
Product Status Obsolete
Core Processor ARM7®
Core Size 32-Bit Single-Core
Speed 60MHz
Connectivity CANbus, I2C, SPI, SSI, SSP, UART/USART, USB
Peripherals DMA, PWM, WDT
Number of I/O 72
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
RAM Size 16K x 8
Supply Voltage - Operating 3V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

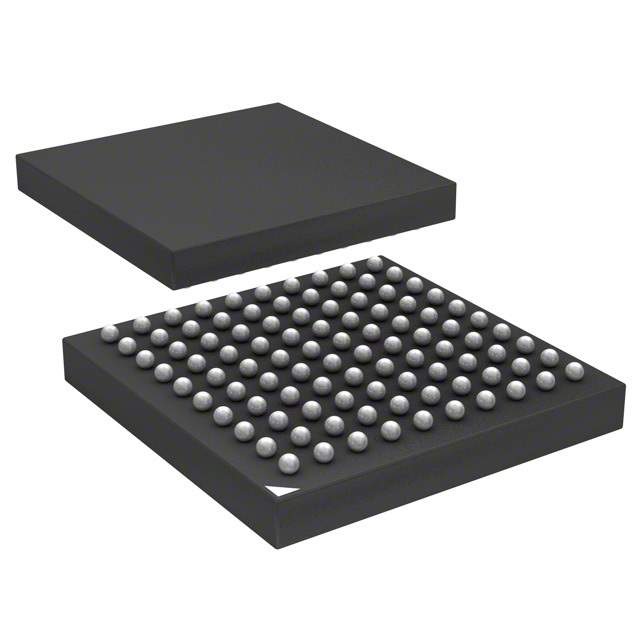

Package / Case 100-LFBGA
Base Product Number STR750
Other Names 497-5649
Standard Package 184
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262014-STR750FV2H6
Ultra Librarian 3D Model Ultra Librarian STR750FV2H6 CAD Model

Description

STMicroelectronics STR750FV2H6 Microcontroller

The STR750FV2H6 is a high-performance microcontroller unit (MCU) from the reputable semiconductor manufacturer STMicroelectronics. It is designed to deliver the perfect balance between high computing performance and low power consumption, making it an ideal choice for a wide range of applications, including industrial control systems, automotive electronics, and complex embedded systems.

At the heart of the STR750FV2H6 lies an ARM7TDMI-S™ 32-bit RISC core, which operates at a frequency of up to 60 MHz. This core is known for its excellent performance and efficiency, which is further enhanced by the advanced embedded memory system in the STR750FV2H6. This system comprises 256 KB of Flash memory and 16 KB of RAM, providing ample storage for code and data while ensuring fast and reliable operation.

The microcontroller also features a comprehensive set of peripherals and interfaces that greatly extend its capabilities. These include multiple 16-bit timers, watchdog timers, a real-time clock, and a 10-bit analog-to-digital converter (ADC) with up to 16 channels. Communication needs are well-catered for with interfaces such as USB, CAN, UART, SPI, and I2C, which enable the STR750FV2H6 to easily connect with other devices and form the backbone of complex systems.

For enhanced security and system reliability, the STR750FV2H6 incorporates a Memory Protection Unit (MPU) which allows for the safe execution of code by preventing unauthorized access to specified memory regions. This is an essential feature for applications that require stringent safety measures.

Furthermore, developers will appreciate the in-circuit debugging and in-system programming capabilities made possible through the JTAG interface. This ensures that the STR750FV2H6 can be easily programmed and debugged during development, significantly reducing time-to-market.

With its robust architecture, extensive feature set, and adherence to industry-standard ARM technology, the STR750FV2H6 from STMicroelectronics is a versatile and reliable microcontroller that meets the needs of complex and demanding applications.
