Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr STMicroelectronics
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.75 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 40 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Operating Temperature - Junction 175°C (Max)
Mounting Type Through Hole
Package / Case TO-3P-3 Full Pack
Supplier Device Package TO-3PF
Base Product Number STTH60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 497-13992-5,497-STTH60AC06CPF,497-13992-5-ND
Standard Package 30
Win Source Part Number 1202939-STTH60AC06CPF
Ultra Librarian 3D Model Ultra Librarian STTH60AC06CPF CAD Model

Description

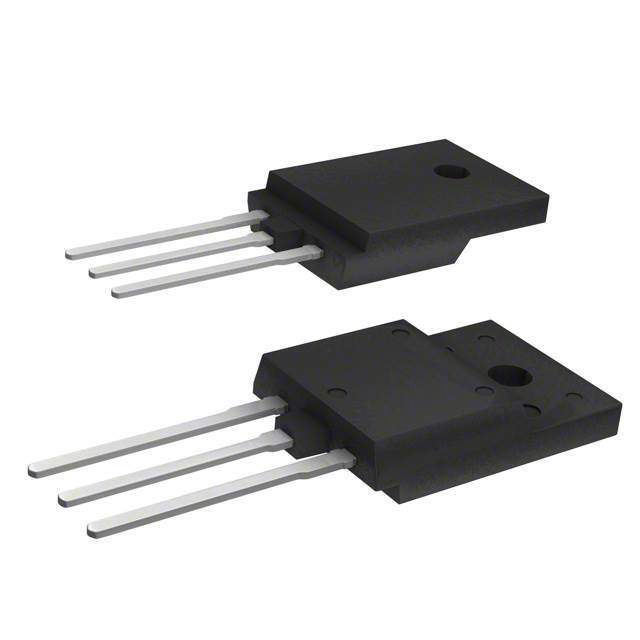

STTH60AC06CPF - Ultrafast Recovery Diode from STMicroelectronics

The STTH60AC06CPF is a state-of-the-art ultrafast recovery diode designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This high-performance diode is specifically engineered to meet the rigorous demands of modern power conversion applications, providing efficient and reliable operation in a compact form factor.

Key Features

  • High Reverse Voltage: With a reverse voltage of up to 600V, this diode is capable of handling high voltage environments, making it suitable for a wide range of power applications.
  • Fast Switching Speed: The ultrafast recovery time significantly reduces switching losses and enhances overall efficiency, which is critical in high-frequency operations.
  • Low Forward Voltage Drop: The device's low forward voltage drop ensures minimal power dissipation during conduction, contributing to energy savings and thermal management.
  • High Surge Current Capability: Its robust design allows the diode to withstand high surge currents, providing reliability and stability under transient conditions.
  • Soft Recovery Characteristics: The diode features soft recovery behavior that minimizes electromagnetic interference (EMI) and stress on the device during switching, thus extending its lifespan.

Applications

The STTH60AC06CPF is ideal for various applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits (PFC)
  • Freewheeling diodes in converters and inverters
  • Snubber diodes
  • Automotive applications requiring high reliability

Package and Quality

This diode comes in a TO-247 package, which is known for its ability to handle high power levels and its ease of mounting on a heatsink for improved thermal dissipation. The STTH60AC06CPF is RoHS compliant and adheres to the highest quality standards set by STMicroelectronics, ensuring performance, durability, and environmental safety.

Conclusion

In summary, the STTH60AC06CPF ultrafast recovery diode from STMicroelectronics is an excellent choice for designers looking to optimize the performance and efficiency of their power conversion systems. Its robust features and versatile applications make it a valuable component in any high-voltage, high-frequency power management solution.
