Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 3.6V @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 10μA @ 600V
Mounting Through Hole
Case / Package TO-220AC ins
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 037841-STTH806DTI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name STTH806DTI
Introduction Date October 01, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian STTH806DTI CAD Model

Description

Overview of STTH806DTI

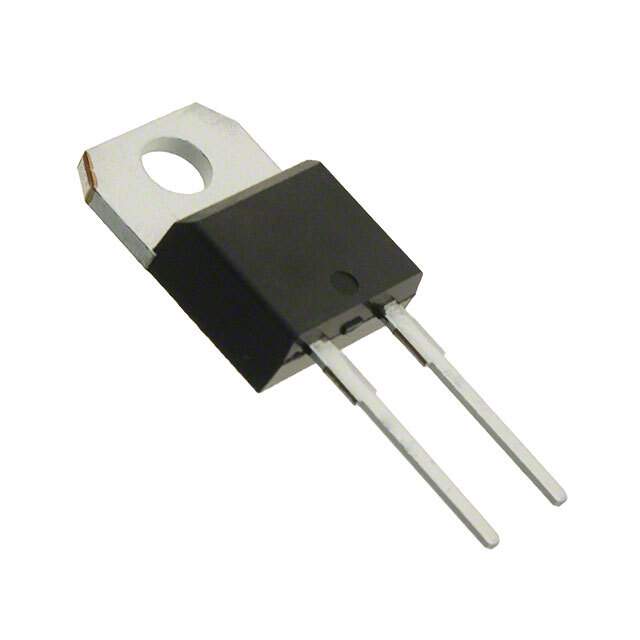

The STTH806DTI is a high-performance ultrafast diode, expertly crafted by STMicroelectronics, one of the leading names in semiconductor technology. This diode is specifically designed to meet the stringent requirements of high-efficiency power supplies, inverters, and as a freewheeling diode for motor applications. With its advanced technical features, it is an ideal component for high-frequency power switching circuits.

Key Features

  • Ultrafast Switching: The STTH806DTI boasts an extremely fast reverse recovery time, which minimizes energy losses during switching and enhances overall efficiency.
  • High Voltage Capability: It can withstand high reverse voltages up to 600V, providing a wide safety margin for electrical devices operating at high voltages.
  • Low Forward Voltage Drop: This diode features a low forward voltage drop, which reduces thermal stress and power loss, further improving the efficiency of the application it is used in.
  • High Surge Current Capability: It is capable of handling high surge currents, making it robust in applications that experience short-term overloads.
  • Insulated Package: The device comes in an insulated TO-220FP package, offering improved thermal performance and simplifying the insulation process in the assembly of end applications.

Applications

The STTH806DTI is versatile and can be used in a variety of applications, such as:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits (PFC)
  • Snubber circuits
  • Freewheeling diodes for motor control applications
  • High-frequency rectifiers

Reliability and Performance

STMicroelectronics ensures that the STTH806DTI meets the highest quality and reliability standards. The diode's robust design allows for continuous operation even under harsh conditions, making it a reliable choice for industrial and commercial applications. With its combination of efficiency, speed, and thermal performance, the STTH806DTI is an excellent choice for engineers looking to optimize their power circuits.
