The TDA7496S is a high-performance audio amplifier integrated circuit (IC) developed by STMicroelectronics. Designed to deliver a remarkable sound experience, the TDA7496S is a staple in audio applications where efficiency and power are in demand. This IC is particularly well-suited for TV and monitor audio systems, compact audio players, and other multimedia devices.

Key Features

• Output Power: Capable of delivering up to 5W of continuous average power to an 8Ω load with 0.5% THD+N from a 12V power supply.
• Audio Quality: The TDA7496S boasts low harmonic distortion and low noise, ensuring high-quality audio reproduction.
• Efficiency: Its class AB amplifier design provides a good compromise between efficiency and audio fidelity.
• Flexibility: The IC includes a mute and standby function, allowing for better control and power-saving options.
• Protection Systems: It incorporates multiple protection systems, including short-circuit protection and thermal shutdown, which safeguard the IC under adverse conditions.

Technical Specifications

• Supply Voltage: Operates over a wide range of supply voltages from 6V to 18V.
• Signal-to-Noise Ratio: Offers a high SNR, typically 100 dB, for clear audio output.

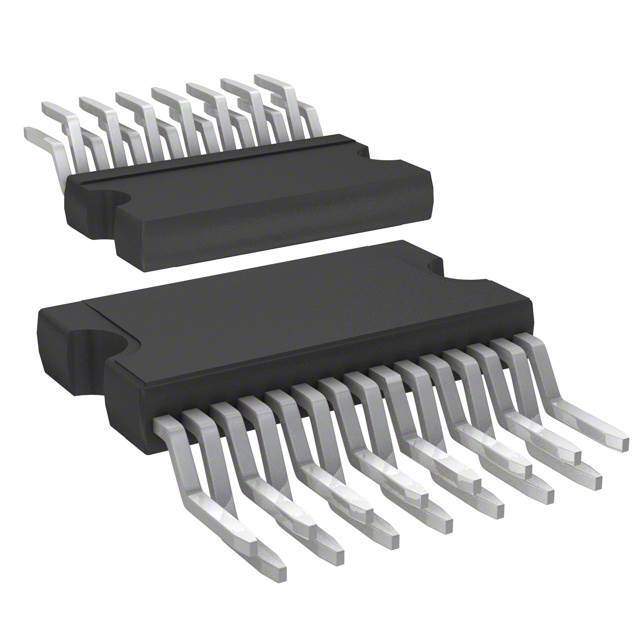

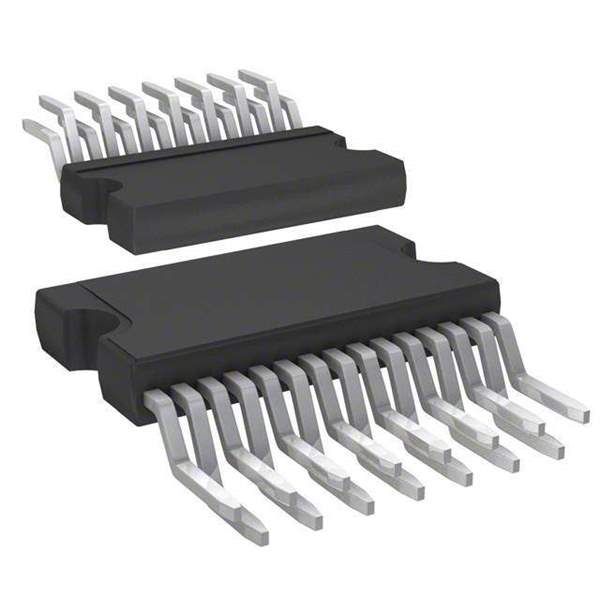

• Pin Configuration: Comes in a compact 20-pin Multiwatt package allowing for space-saving designs.

Applications

• Television and Monitor Audio Systems
• Portable Audio Players
• Compact Stereo
• Multi-media Speakers

The TDA7496S from STMicroelectronics is designed for audio enthusiasts and professionals looking for a reliable and high-performing audio amplifier solution. With its robust design and comprehensive feature set, the TDA7496S is a versatile choice for a wide range of audio applications.
