Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 4 V/μs
Gain Bandwidth Product (GBP) 12MHz
Current - Input Bias 200nA
Voltage - Input Offset 1mV
Operating Supply Current 2mA
Channel Output Current 100mA
Supply Voltage - Operating 2.7 V to 10 V, ±1.35 V to 5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)

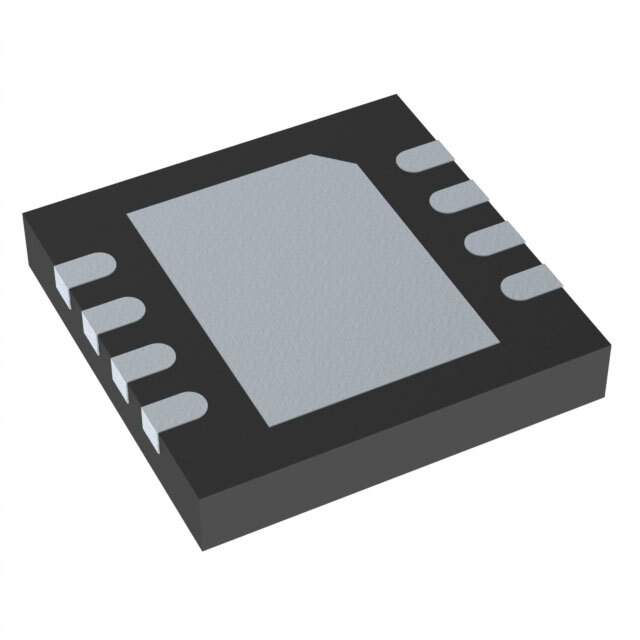

Case / Package 8-DFN (3x3)
Win Source Part Number 035257-TS972IQT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TS972IQT CAD Model

Description

STMicroelectronics TS972IQT: A High-Performance Operational Amplifier

The TS972IQT is a cutting-edge operational amplifier (op-amp) developed by STMicroelectronics, a global semiconductor leader known for its innovative and high-quality products. This op-amp is part of the TS97x series, which is designed to offer a blend of low power consumption and high accuracy, making it an ideal choice for a wide range of applications.

Key Features

  • Low Noise Performance: The TS972IQT is engineered to provide low noise operation, which is crucial for high-fidelity audio applications and precision instrumentation.
  • Low Power Consumption: With its focus on energy efficiency, this op-amp is suitable for battery-powered devices, portable equipment, and any application where power conservation is a priority.
  • Rail-to-Rail Output: The device's rail-to-rail output capability allows for a wider dynamic range, thus maximizing the use of the supply voltage range.
  • High Output Current: Its ability to deliver a high output current makes the TS972IQT capable of driving capacitive loads, which is beneficial for actuator control and similar tasks.
  • Stable with Low Capacitive Loads: The op-amp remains stable even with low capacitive loads, ensuring reliable performance in a variety of circuit configurations.

Applications

The versatility of the TS972IQT allows it to be used in a diverse array of electronic circuits. It is particularly well-suited for:

  • Audio Processing Circuits
  • Sensor Signal Conditioning
  • Active Filters and Amplifiers
  • Analog-to-Digital Converter Drivers
  • Battery-Powered and Portable Devices

Technical Specifications

The TS972IQT operates within a supply voltage range of 2.7V to 5.5V, which is typical for many low-voltage applications. Its extended temperature range ensures performance in various environmental conditions. The device is offered in a compact surface-mount package, which is ideal for space-constrained applications.

Conclusion

Overall, the TS972IQT from STMicroelectronics stands out as a high-performance operational amplifier that combines low-power operation with high precision and stability. Its broad application range and robust feature set make it an excellent choice for designers looking to enhance their electronic designs with a reliable and efficient op-amp solution.
