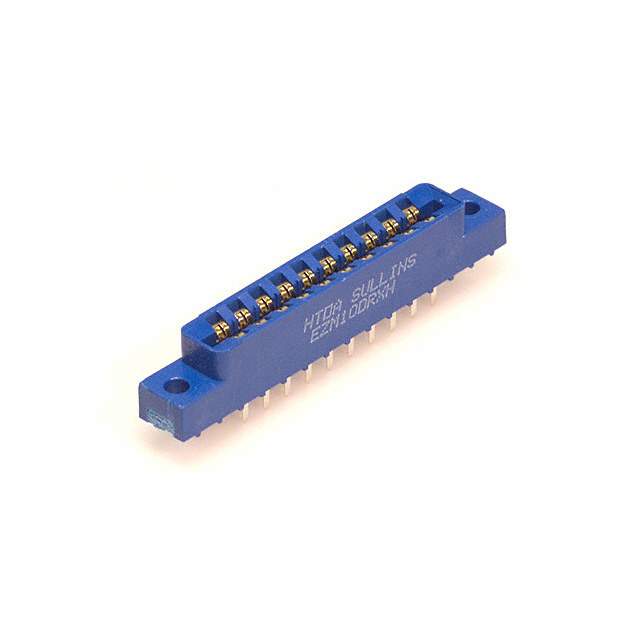

EBM10DRXH Real Image
Same model may have multiple batches, images only for reference.

EBM10DRXH

Part No EBM10DRXH
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.156 / Conn Card Edge F 20 POS 3.96mm Solder ST Thru-Hole
Datasheet
EBM10DRXH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Sullins Connector Solutions
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 10
Number of Positions 20
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Contact Type Full Bellows
Color Blue
Flange Feature Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature Range -65°C ~ 125°C
Material - Insulation Polybutylene Terephthalate (PBT)
Read Out Dual
Win Source Part Number 770248-EBM10DRXH
Popularity Medium
Supply and Demand Status Balance
Family Name M
Introduction Date March 31, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian EBM10DRXH CAD Model

Description

The EBM10DRXH is an electronic component manufactured by Sullins Connector Solutions.

  • Supply and Demand Status: Balanced
  • Connector Type: Dual-edge card connector
  • Positions: 20
  • Pitch: 0.156 inches
  • Mounting Type: Through-hole
  • Contact Finish: Gold
  • Contact Material: Phosphor bronze
