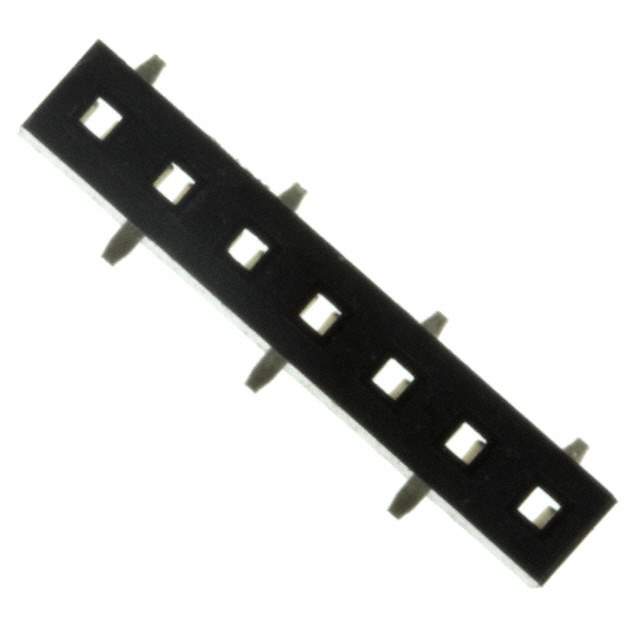

NPPN071BFLC-RC Real Image1 NPPN071BFLC-RC Real Image2
Same model may have multiple batches, images only for reference.
NPPN071BFLC-RC Real Image1 NPPN071BFLC-RC Real Image2
NPPN071BFLC-RC Real Image1 NPPN071BFLC-RC Real Image2
Same model may have multiple batches, images only for reference.

NPPN071BFLC-RC

Part No NPPN071BFLC-RC
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HDR 7POS 0.079 GOLD SMD / 7 Position Header Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
NPPN071BFLC-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr Sullins Connector Solutions
Series -
Package Tube
Connector Type Header
Contact Type Female Socket
Style Board to Board
Number of Positions 7
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Insulation Color Black
Insulation Height 0.181" (4.60mm)
Contact Length - Post -
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) 2A
Voltage Rating 150V
Applications -
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post Flash
Base Product Number NPPN071
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 42 pcs
Win Source Part Number 1383053-NPPN071BFLC-RC
Ultra Librarian 3D Model Ultra Librarian NPPN071BFLC-RC CAD Model

Description

The NPPN071BFLC-RC is a rectangular connector header manufactured by Sullins Connector Solutions.

  • Application: Board-to-Board
  • Fastening Type: Push-Pull
  • Positions: 7
  • Pitch: 0.079" (2.00mm)
  • Insulation Material: Polyamide (PA6T)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 150V
  • Operating Temperature: -40°C to 105°C
  • Mounting Type: Surface Mountable
  • Package: Tube
