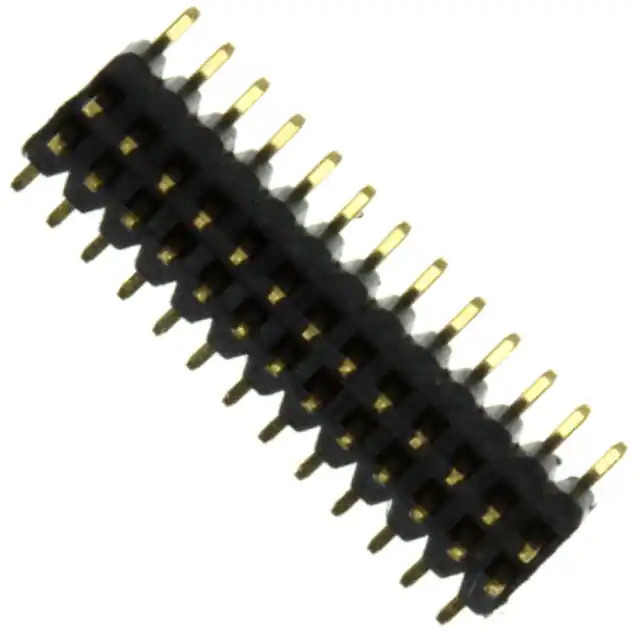

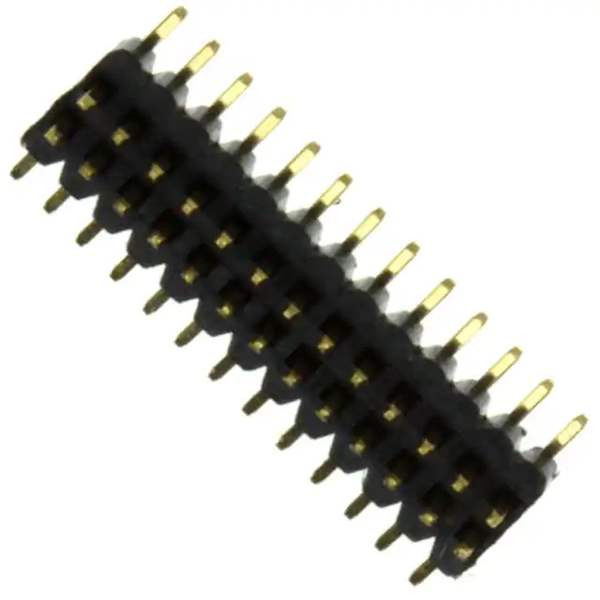

SMH151-LPSE-D13-SP-BK

Name: SMH151-LPSE-D13-SP-BK
Brand: Sullins Connector Solutions
SKU: 1356117
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMH151-LPSE-D13-SP-BK
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 26POS 1MM / Connector Header Surface Mount 26 position 0.039" (1.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Series	SMH
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-40°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	10.0µin (0.25µm)
Applications	-
Base Product Number	SMH151
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1356117-SMH151-LPSE-D13-SP-BK
Ultra Librarian 3D Model	Ultra Librarian SMH151-LPSE-D13-SP-BK CAD Model

Alternative Products

Description

The SMH151-LPSE-D13-SP-BK is a male pin header connector from Sullins Connector Solutions. It has 26 positions and 2 rows, providing a reliable and secure connection.

Positions: 26
Rows: 2
Pitch: 0.039" (1.00mm)
Application: Board-to-Board
Current Rating: 1A
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Mounting: Surface Mount
Fastening Type: Push-Pull
Product Status: Active
Packaging: Tube
