Same model may have multiple batches, images only for reference.

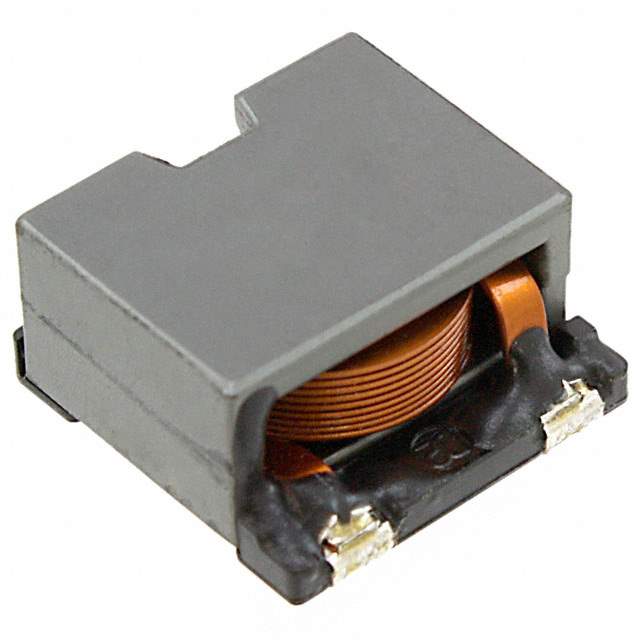

CDEP147NP-2R4MC-95 Real Image
Same model may have multiple batches, images only for reference.

CDEP147NP-2R4MC-95

Part No CDEP147NP-2R4MC-95
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 2.4uH 20% 100KHz Ferrite 17.5A 0.00323Ohm DCR T/R / FIXED IND 2.4UH 17.5A 3.23 MOHM
Datasheet
CDEP147NP-2R4MC-95 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.4μH
Tolerance ±20%
Current Rating 17.5A
Current - Saturation 22.4A
DC Resistance (DCR) 3.23 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.315" (8.00mm)
Win Source Part Number 039878-CDEP147NP-2R4MC-95
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CDEP147
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CDEP147NP-2R4MC-95 CAD Model

Description

CDEP147NP-2R4MC-95 Inductor

The CDEP147NP-2R4MC-95 is a highly efficient power inductor designed to deliver optimal performance in a compact form factor. Ideal for applications that demand reliable and stable inductance, this component is a favored choice for power supply circuits.

  • Applications/Projects:
    • DC-DC converters
    • Switching power supplies
    • Power modules
  • Features and Benefits:
    • Low profile and small footprint for space-constrained designs
    • High current handling capability
    • Excellent thermal stability and reliability
    • Saturation resistant core material

The CDEP147NP-2R4MC-95's robust construction allows it to perform effectively under various environmental conditions, making it a versatile component for modern electronic designs.
