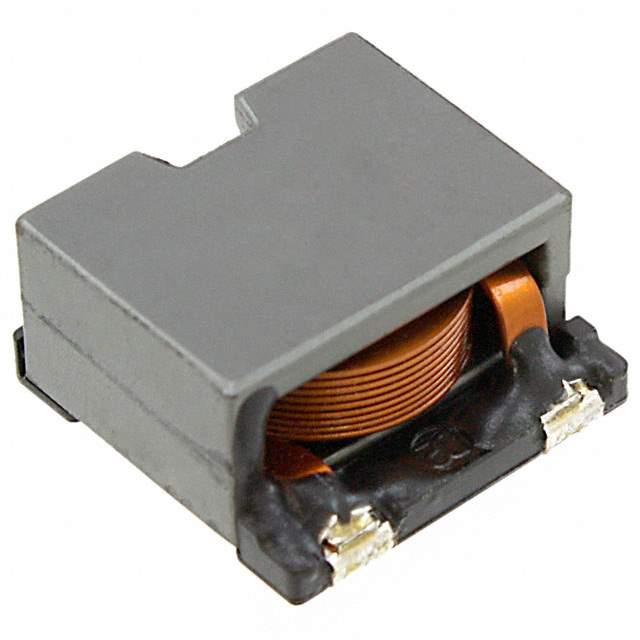

CDEP147NP-7R7MC-95 Real Image
Same model may have multiple batches, images only for reference.

CDEP147NP-7R7MC-95

Part No CDEP147NP-7R7MC-95
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 7.7UH 10A 9.85 MOHM
Datasheet
CDEP147NP-7R7MC-95 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 7.7μH
Tolerance ±20%
Current Rating 10A
Current - Saturation 12.4A
DC Resistance (DCR) 9.85 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.315" (8.00mm)
Win Source Part Number 132735-CDEP147NP-7R7MC-95
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDEP147NP-7R7MC-95 CAD Model

Description

CDEP147NP-7R7MC-95 Inductor

The CDEP147NP-7R7MC-95 is a versatile power inductor that features a high inductance value suitable for various electronic circuits. Designed to achieve maximum efficiency, this inductor is perfect for developers seeking to optimize their power solutions.

  • Applications/Projects:
    • RFID systems
    • Consumer electronics
    • Military communication devices
  • Features and Benefits:
    • Compact and lightweight design
    • High Q factor ensuring low energy loss
    • Corrosion-resistant materials
    • Long operational life for extended use

Given its adaptability and efficiency, the CDEP147NP-7R7MC-95 is excellent for use in both high-tech consumer gadgets and critical communication hardware.
