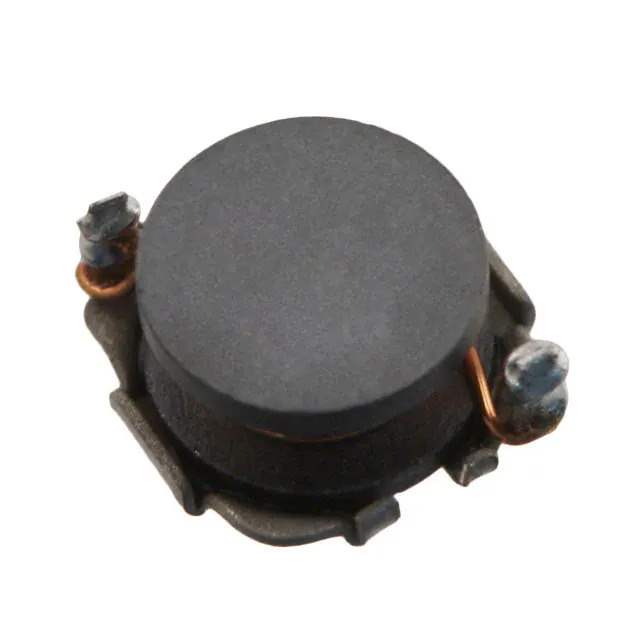

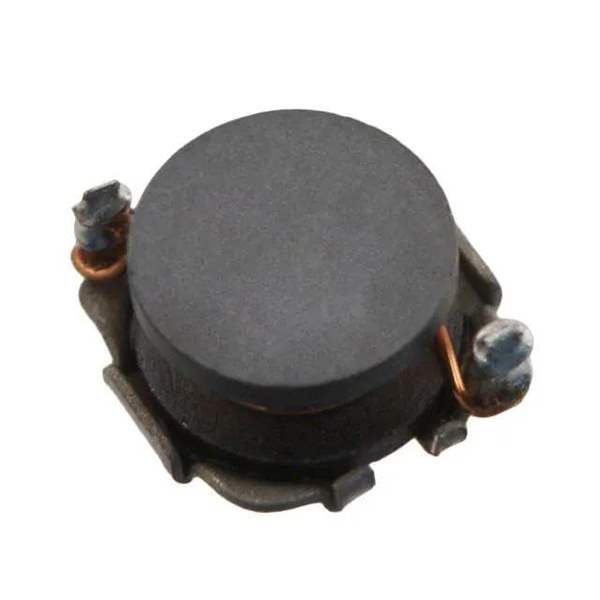

Same model may have multiple batches, images only for reference.

CDH53NP-470KC

Name: CDH53NP-470KC
Brand: Sumida America Components Inc.
SKU: 578043
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CDH53NP-470KC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 47UH 530MA 770MOHM SMD
Datasheet	CDH53NP-470KC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CDH53
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±10%
Current Rating (Amps)	530 mA
Shielding	Unshielded
DC Resistance (DCR)	770mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.236" L x 0.205" W (6.00mm x 5.20mm)
Height - Seated (Max)	0.126" (3.20mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	578043-CDH53NP-470KC
Ultra Librarian 3D Model	Ultra Librarian CDH53NP-470KC CAD Model

Alternative Products

Description

The 578043-CDH53NP-470KC is a drum core, wirewound fixed inductor from Sumida America Components Inc.

Series: CDH53
Size: 0.236" L x 0.205" W (6.00mm x 5.20mm)
Shielding: Unshielded
Inductance: 47 µH
Tolerance: ±10%
Mounting Type: Surface Mount
Package: Tape & Reel
Core Material: Ferrite
DC Resistance: 770mOhm
Current Rating: 530mA
Temperature Range: -40°C to 100°C
Status: Active
