Same model may have multiple batches, images only for reference.

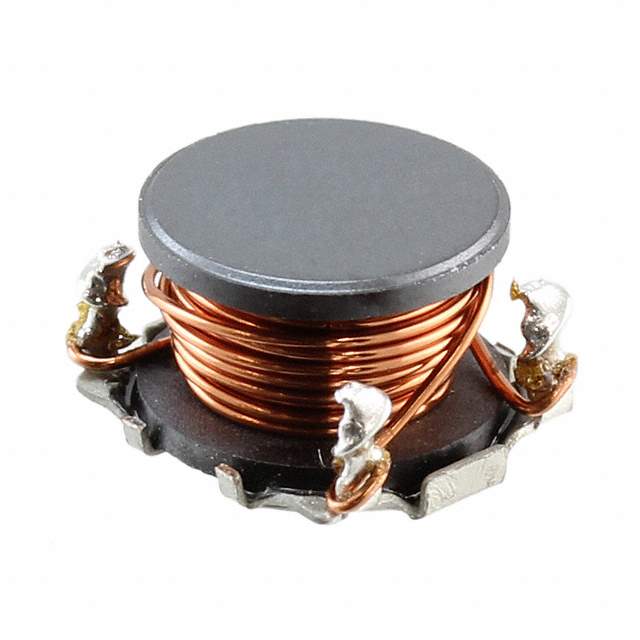

CDH74NP-150LC Real Image
Same model may have multiple batches, images only for reference.

CDH74NP-150LC

Part No CDH74NP-150LC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 2.1A 83 MOHM SMD / Inductor Power Unshielded Drum Core 15uH 15% 1KHz Ferrite 2.1A 0.083Ohm DCR T/R
Datasheet
CDH74NP-150LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDH74
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±15%
Current Rating 2.1A
Shielding Unshielded
DC Resistance (DCR) 83 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.315" L x 0.287" W (8.00mm x 7.30mm)
Height - Seated (Maximum) 0.205" (5.20mm)
Win Source Part Number 771446-CDH74NP-150LC
Popularity Medium
Supply and Demand Status Limited
Family Name CDH74
Introduction Date July 29, 2002
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CDH74NP-150LC CAD Model

Description

The Sumida America Components Inc. CDH74NP-150LC is a wirewound type electronic component with a nonstandard package and a mounting style of SMD.

  • Current Rating: 2.1A
  • Inductance: 15μH
  • Win Source Part Number: 771446
  • Manufacturer Homepage: www.sumida.com
