Same model may have multiple batches, images only for reference.

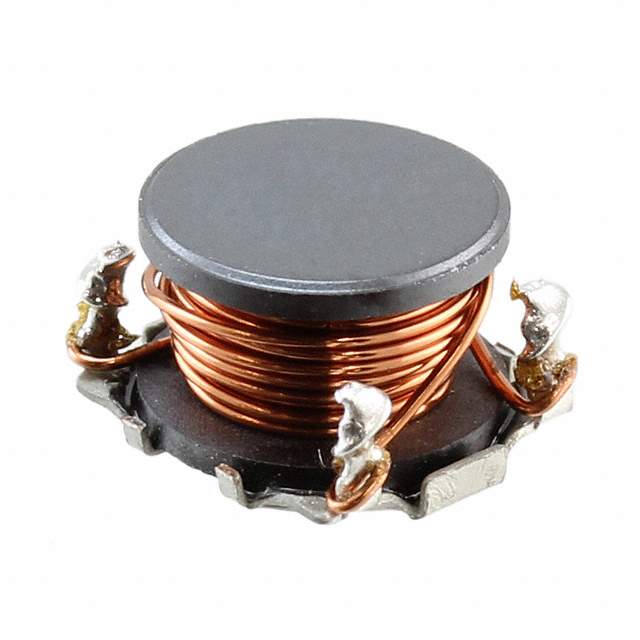

CDH74NP-470KC Real Image
Same model may have multiple batches, images only for reference.

CDH74NP-470KC

Part No CDH74NP-470KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1.2A 230 MOHM SMD / Inductor Power Unshielded Drum Core 47uH 10% 1KHz Ferrite 1.2A 0.23Ohm DCR T/R
Datasheet
CDH74NP-470KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDH74
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±10%
Current Rating 1.2A
Shielding Unshielded
DC Resistance (DCR) 230 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.315" L x 0.287" W (8.00mm x 7.30mm)
Height - Seated (Maximum) 0.205" (5.20mm)
Win Source Part Number 771447-CDH74NP-470KC
Popularity Medium
Supply and Demand Status Balance
Family Name CDH74
Introduction Date July 29, 2002
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CDH74NP-470KC CAD Model

Description

The Sumida America Components Inc. CDH74NP-470KC is a ferrite core wirewound inductor with an inductance of 47μH.

  • Current Rating: 1.2A
  • Package: Nonstandard
  • Operating Temperature Range: -40°C ~ 100°C
  • Tolerance: ±10%
  • DC Resistance: 230 mOhm max
  • Series: CDH74
  • Category: Inductors, Coils, Chokes
  • Estimated EOL Date: 2025
