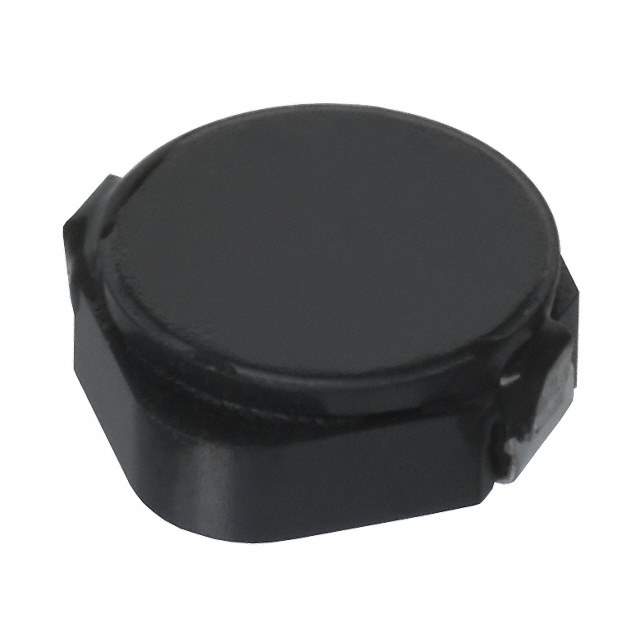

CDPH4D19FNP-470MC Real Image
Same model may have multiple batches, images only for reference.

CDPH4D19FNP-470MC

Part No CDPH4D19FNP-470MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1.03A 293 MOHM
Datasheet
CDPH4D19FNP-470MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 1.03A
Current - Saturation 360mA
DC Resistance (DCR) 293 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 139403-CDPH4D19FNP-470MC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDPH4D19FNP-470MC CAD Model

Description

CDPH4D19FNP-470MC Inductor

The CDPH4D19FNP-470MC is a robust inductor offering efficient performance in various electronic applications. Its compact design supports high reliability even in demanding environments.

  • Applications/Projects:
    • Consumer electronics
    • Automotive systems
    • Industrial power supplies
    • RF applications
  • Features and Benefits:
    • Exceptional energy efficiency with low DC resistance
    • Space-saving design ideal for compact devices
    • High current capacity supports robust applications
    • Minimized electromagnetic interference due to shielding
  • Additional Details:
    • Inductance: 47μH
    • Maximum current: 1.2A
    • Operating temperature range: -40°C to +125°C
