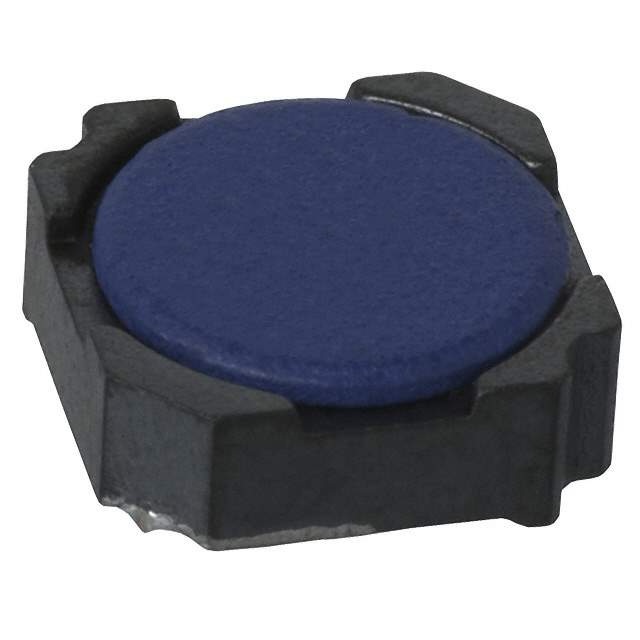

CDR7D28MNNP-1R2NC Real Image
Same model may have multiple batches, images only for reference.

CDR7D28MNNP-1R2NC

Part No CDR7D28MNNP-1R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1.2UH 4.5A 20.5MOHM SM
Datasheet
CDR7D28MNNP-1R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 35 Weeks
Features Shielded - Inductor 20.5mOhm Max Nonstandard
Manufacturer Sumida America Components Inc.
Series CDR7D28MN
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-1322-6, CDR7D28MNNP1R2NC, 308-1322-1, Q2575030, 308-1322-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866221-CDR7D28MNNP-1R2NC
Ultra Librarian 3D Model Ultra Librarian CDR7D28MNNP-1R2NC CAD Model

Description

The Sumida America Components Inc. CDR7D28MN series is a nonstandard inductor that is shielded to provide maximum protection.

  • Series: CDR7D28MN
  • Shielded: Yes
  • Operating Temperature Range: -40°C to 105°C
  • Maximum Resistance: 20.5mOhm
  • Mounting: Surface Mountable
  • Package: Reel - TR
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 35 weeks
  • HTSUS: 8504.50.4000
  • Category: Inductors
  • ECCN: EAR99
  • Supply and Demand Status: Limited
