Same model may have multiple batches, images only for reference.

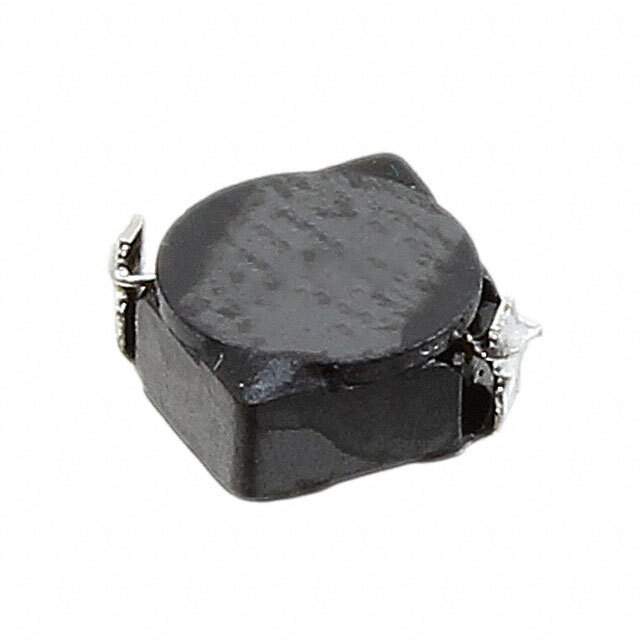

CDRH4D22HPNP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D22HPNP-4R7NC

Part No CDRH4D22HPNP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Ferrite drum core construction.
Datasheet
CDRH4D22HPNP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH4D22/HP
Packaging Reel - TR
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±25%
Current Rating 1.8A
Current - Saturation 2.2A
Shielding Shielded
DC Resistance (DCR) 82.6 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Maximum) 0.094" (2.40mm)
Win Source Part Number 1160853-CDRH4D22HPNP-4R7NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH4D22/HP
Introduction Date February 01, 2005
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH4D22HPNP-4R7NC CAD Model

Description

The CDRH4D22HPNP-4R7NC is an inductor coil manufactured by Sumida America Components Inc.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Current Rating: 1.8A
  • Inductance: 4.7μH
  • Operating Temperature Range: -40°C ~ 100°C
  • Shielding: Shielded
  • Manufacturer's Homepage: www.sumida.com
