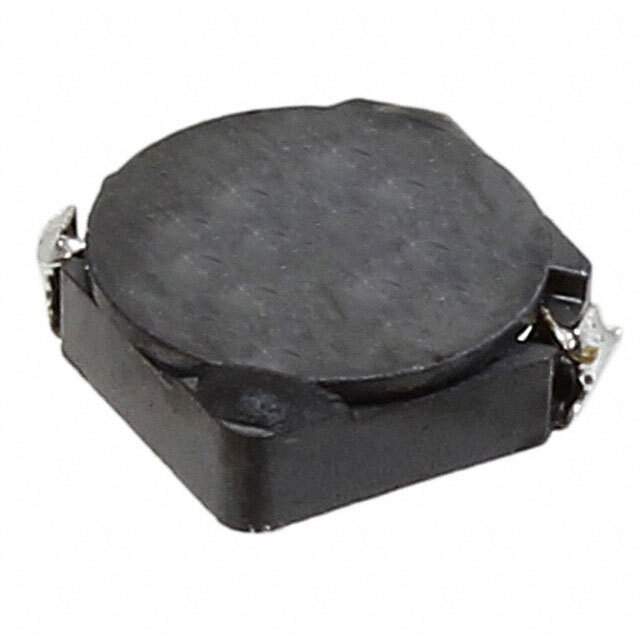

CDRH5D16NP-3R3NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D16NP-3R3NC

Part No CDRH5D16NP-3R3NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.4A 44.5 MOHM
Datasheet
CDRH5D16NP-3R3NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±25%
Current Rating 2.4A
Current - Saturation 2.6A
DC Resistance (DCR) 44.5 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 050255-CDRH5D16NP-3R3NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH5D16NP-3R3NC CAD Model

Description

The CDRH5D16NP-3R3NC offers exceptional inductance in a compact form factor, suited for a broad spectrum of electronic applications. It is designed to enhance circuit efficiency and reduce noise interference.

Features and Benefits

  • High inductance with low resistance
  • Compact and lightweight design
  • Superior thermal management
  • Enhanced noise filtering capabilities

Applications

  • Wireless charging systems
  • Battery-powered devices
  • Consumer electronics
  • Industrial power units

The CDRH5D16NP-3R3NC ensures optimal performance, making it an important component in cutting-edge electronic projects.
