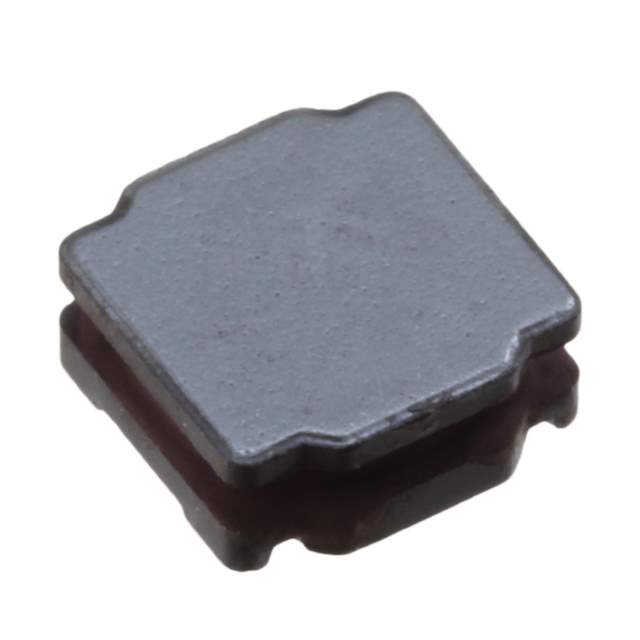

LQH2MPN2R2MGRL

Name: LQH2MPN2R2MGRL
Brand: Murata Electronics North America
SKU: 970843
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQH2MPN2R2MGRL
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 680MA 468MOHM SM / 2.2 µH Shielded Drum Core, Wirewound Inductor 680 mA 468mOhm Max 0806 (2016 Metric)
Datasheet	LQH2MPN2R2MGRL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Murata Electronics
Series	LQH2
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	680 mA
Current - Saturation (Isat)	1.18A
Shielding	Shielded
DC Resistance (DCR)	468mOhm Max
Frequency - Self Resonant	50MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806 (2016 Metric)
Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.037" (0.95mm)
Base Product Number	LQH2MPN
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	490-15914-6,490-15914-1,490-15914-2
Standard Package	3,000
Win Source Part Number	970843-LQH2MPN2R2MGRL
Ultra Librarian 3D Model	Ultra Librarian LQH2MPN2R2MGRL CAD Model

Alternative Products

Description

The LQH2MPN2R2MGRL is an electronic component manufactured by Murata Electronics.

Win Source Part Number: 970843-LQH2MPN2R2MGRL
Series: LQH2
Type: Drum Core, Wirewound Inductor
Inductance: 2.2µH
Popularity: Low
Supply and Demand Status: Limited
