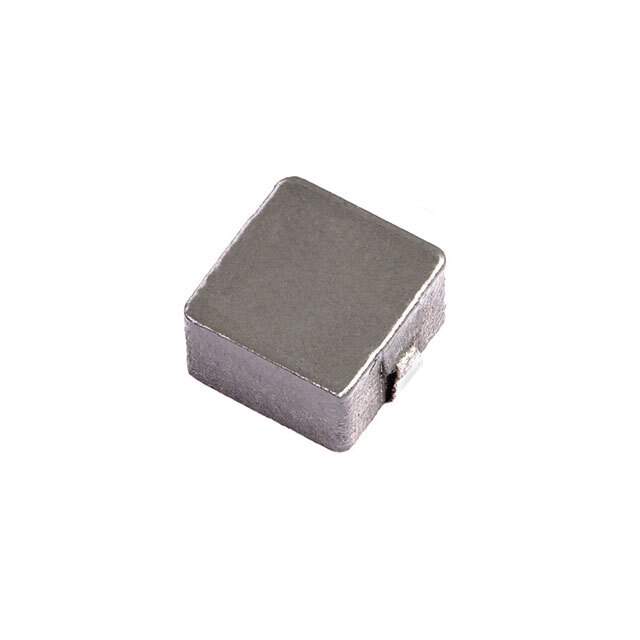

HCMA0503-4R7-R

Name: HCMA0503-4R7-R
Brand: Eaton Bussmann
SKU: 1327496
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCMA0503-4R7-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 4.5A 60 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 4.5 A 60mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Eaton - Electronics Division
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	4.5 A
Current - Saturation (Isat)	5.5A
Shielding	Shielded
DC Resistance (DCR)	60mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	283-4525-2,283-4525-1,283-4525-6
Standard Package	2,000
Win Source Part Number	1327496-HCMA0503-4R7-R
Ultra Librarian 3D Model	Ultra Librarian HCMA0503-4R7-R CAD Model

Alternative Products

Description

The HCMA0503-4R7-R is a fixed inductor from Eaton - Electronics Division.

Core Type: Drum Core, Wirewound
Shielding: Yes
Standard Package: 2,000
Tolerance: ±20%
AEC-Q200 Rating: Yes
Operating Temperature Range: -55°C to 125°C
Current Rating: 4.5A
Inductance Frequency Test: 100 kHz
Case/Package: Nonstandard
RoHS Compliant: Yes
