Same model may have multiple batches, images only for reference.

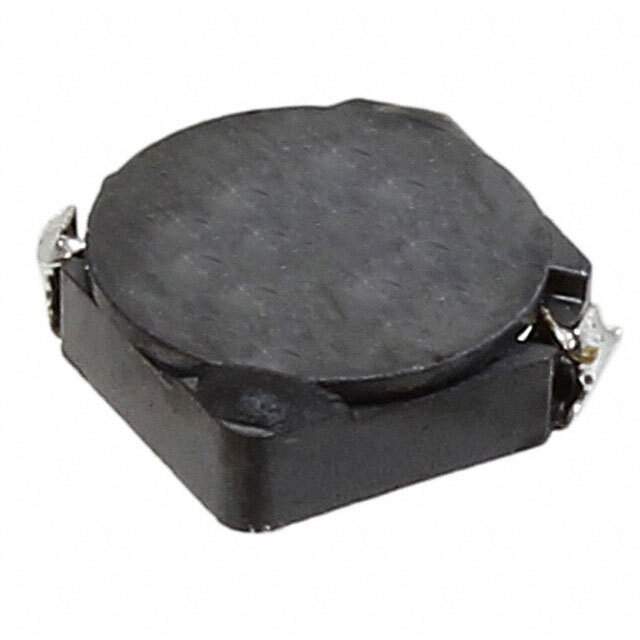

CDRH5D16NP-820MC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D16NP-820MC

Part No CDRH5D16NP-820MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 82UH 420MA 1.06 OHM
Datasheet
CDRH5D16NP-820MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 82μH
Tolerance ±20%
Current Rating 420mA
Current - Saturation 500mA
DC Resistance (DCR) 1.06 Ohm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 127932-CDRH5D16NP-820MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH5D16NP-820MC CAD Model

Description

The CDRH5D16NP-820MC is expertly designed to handle complex electronic functions, ensuring efficient energy usage and minimal signal distortion across various applications.

Features and Benefits

  • High reliability and low DCR
  • Optimized for synchronous rectification
  • Compact form for diverse applications
  • Excellent heat dissipation

Applications

  • Smartphones and tablets
  • Digital cameras
  • Power management systems
  • Aerospace and military electronics

Providing high inductance in a small size, the CDRH5D16NP-820MC is an essential part of modern and efficient electronic designs.
