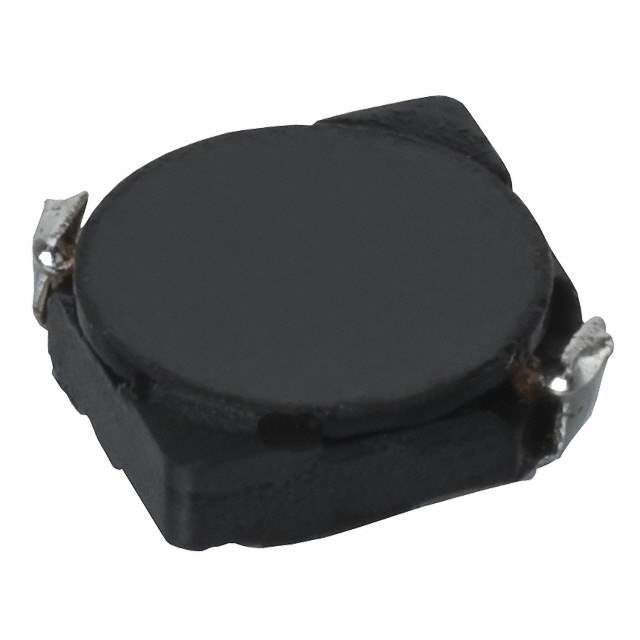

CDRH5D28NP-4R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D28NP-4R2NC

Part No CDRH5D28NP-4R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.2UH 2.2A 31 MOHM SMD
Datasheet
CDRH5D28NP-4R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 4.2μH
Tolerance ±30%
Current Rating 2.2A
DC Resistance (DCR) 31 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 1028942-CDRH5D28NP-4R2NC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH5D28NP-4R2NC CAD Model

Description

The Sumida America Components Inc. CDRH5D28NP-4R2NC is a ferrite core inductor with a current rating of 2.2A and inductance of 4.2μH.

  • Current Rating: 2.2A
  • Inductance: 4.2μH
  • Package: SMD (SMT)
  • Height: 0.118" (3.00mm)
  • Tolerance: ±30%
  • DC Resistance (DCR): 31 mOhm max
  • Operating Temperature: -40°C to 100°C
  • Status: Active
  • Popularity: Medium
  • Supply: Limited
