Same model may have multiple batches, images only for reference.

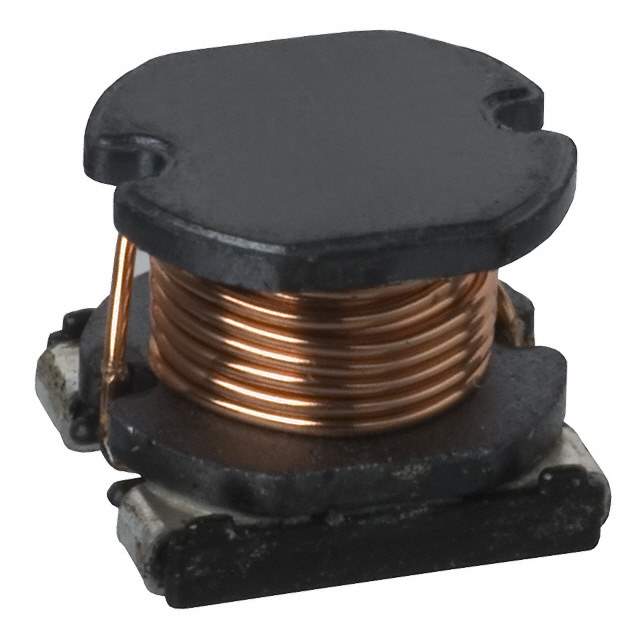

CR54-470LC Real Image
Same model may have multiple batches, images only for reference.

CR54-470LC

Part No CR54-470LC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 720MA 370 MOHM / Inductor Power Unshielded Drum Core 47uH 15% 2.52MHz Ferrite 0.72A 0.37Ohm DCR T/R
Datasheet
CR54-470LC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CR54
Packaging Reel package
Part Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±15%
Current Rating 720mA
Shielding Unshielded
DC Resistance (DCR) 370 mOhm Max
Frequency - Self Resonant 13.6MHz
Operating Temperature Range -30°C ~ 100°C
Test Frequency 2.52MHz
Mounting SMD
Package Nonstandard
Dimension 0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Maximum) 0.191" (4.85mm)
Win Source Part Number 771757-CR54-470LC
Popularity Medium
Supply and Demand Status Balance
Family Name CR54
Introduction Date July 29, 2002
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CR54-470LC CAD Model

Description

The Sumida America Components Inc. CR54 series wirewound inductor is a non-standard package component that is ideal for use in various electronic applications. This inductor has an inductance of 47μH and a current rating of 720mA, with a tolerance of ±15%.

  • Inductance: 47μH
  • Current Rating: 720mA
  • Tolerance: ±15%
  • Operating Temperature Range: -30°C ~ 100°C
  • Core Material: Ferrite
  • Shielded: No
  • Dimension: 0.228" L x 0.209" W (5.80mm x 5.30mm)
  • Height: 0.191" (4.85mm)
  • Self-Resonant Frequency: 13.6MHz
  • Test Frequency: 2.52MHz
  • Family: CR54
  • Category: Inductor, coil, choke
  • Obsolete (EOL): Yes
  • Alternative Parts: NPIS52D470MTRF, SCD0502T-470K-N, MGDN2-00011, and SCDS5D18T-470T-S-N
