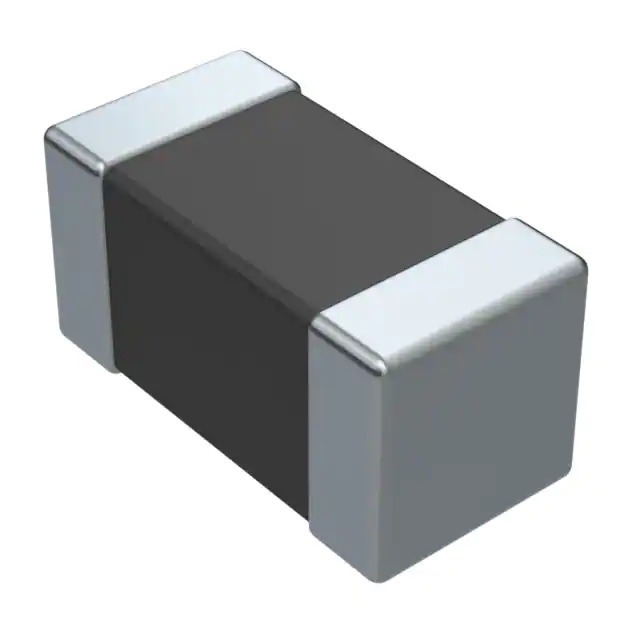

HPZ1005D221-R50TF Sunlord
Same model may have multiple batches, images only for reference.

HPZ1005D221-R50TF

Part No HPZ1005D221-R50TF
Manufacturer Sunlord
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 220 OHM 0402 1LN
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series HPZ
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 220 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 380mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.026" (0.65mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369090-HPZ1005D221-R50TF
Ultra Librarian 3D Model Ultra Librarian HPZ1005D221-R50TF CAD Model

Description

The HPZ series from Shenzhen Sunlord Electronics Co., Ltd. features ferrite beads and chips.

  • Model: HPZ1005D221-R50TF
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape and Reel
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.026" (0.65mm)
  • Designed for: Power line filtering
  • Impedance: 220 Ohms @ 100 MHz
  • Maximum Current Rating: 500mA
  • Maximum DC Resistance: 380mOhm
